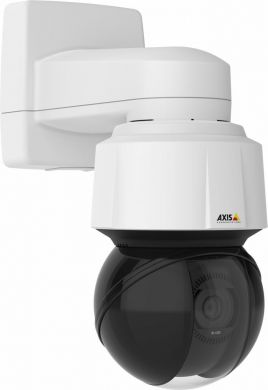

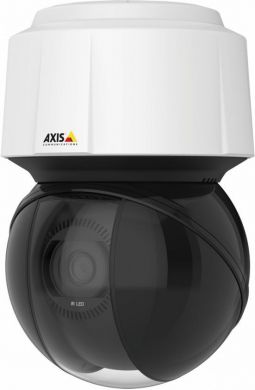

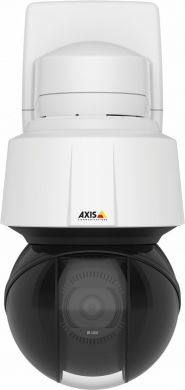

NET CAMERA Q6135-LE PTZ 50HZ/NM 01958-301 AXIS

AC input voltage

100 V

Alert notification type

E-mail

Audio system

2-way

Auto-tracking

+

Auto focus

+

Bluetooth

1

Built-in HDD

1

Camera pan control

+

Camera shutter speed

1 s

Camera tilt control

+

Card reader integrated

0

Compatible memory cards

MicroSD (TransFlash)/MicroSDHC/MicroSDXC

Connectivity technology

Wired

Day/night mode

0

Diameter

165 mm

Digest authentication

+

Digital zoom

12 x

Doesn't contain

PVC

Ethernet LAN

0

Ethernet LAN (RJ-45) ports

1

Flash memory

512 MB

Focal length range

4.3 mm

Form factor

Dome

Frame rate

60 fps

HTTPS encryption

+

Height

241 mm

Housing material

Aluminium/Polycarbonate (PC)

IK code

IK08, IK10

IP address filtering

+

Image quality adjustment

Brightness/Contrast/Saturation/Sharpness

Infra-red wavelength

850 nm

Infrared (IR) cut-off filter

+

Internal memory

1024 MB

International Protection (IP) code

IP66

LED type

IR

Languages support

English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese

Lens viewing angle, horizontal

58.3 °

Lens viewing angle, vertical

34.9 °

Manual

0

Maximum aperture number

4

Maximum resolution

1920 pixels

Minimum aperture number

1.4

Minimum illumination

0.01 lx

Mounting type

Ceiling

Networking standards

IEEE 802.1x/IEEE 802.3at

Night vision

0

Night vision distance

250 m

Number of cameras

1

Number of languages

11

Number of lenses

1

Operating relative humidity (H-H)

10 %

Operating temperature (T-T)

-30 °C

Optical sensor size

1 "

Optical zoom

32 x

PTZ control

+

Pan range

0 °

Pan speed

700 °/sec

Password protection

+

Pixel counter

+

Placement supported

Indoor & outdoor

Power consumption (Power over Ethernet (PoE))

37 W

Power consumption (max)

51 W

Power consumption (typical)

13.5 W

Power source type

AC,PoE

Privacy masking

+

Processor model

ARTPEC-7

Product colour

Black/White

Progressive scan

+

Quality of Service (QoS) support

+

Sensor type

CMOS

Storage relative humidity (H-H)

5 %

Storage temperature (T-T)

-40 °C

Summary

Axis 01959-007. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Lens viewing angle, horizonta

Supported graphics resolutions

1920 x 1080 (HD 1080)/320 x 180

Supported network protocols

IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQT

Supported video modes

1080p

Text caption overlay

+

Tilt angle range

20 °

Tilt speed

500 °/sec

Tour recording

+

Type

IP security camera

Unit Box Height

0.22

Unit Box Length

0.365

Unit Box Width

0.22

Unit Calculated Volume

0.01767 cubm

Units per Pallet

0

Vendor Homepage

https://www.axis.com/products/axis-q6135-le

Video compression formats

H.264/H.265/M-JPEG

Video motion detection

0

Video streaming

+

Warranty period

5 year(s)

Weight

3000 g

Wi-Fi

1

Wide Dynamic Range (WDR)

0

Zoom capability

+
