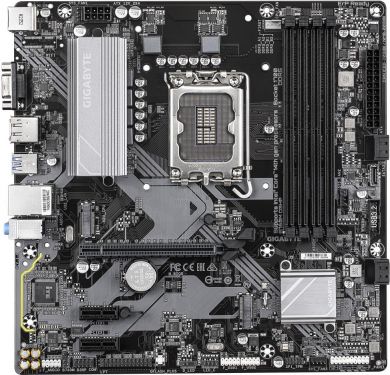

Mainboard GIGABYTE Intel B760 Express LGA1700 Micro-ATX Memory DDR5 Memory slots 4 2xPCI-Express 3.0 1x 1xPCI-Express 4.0 16x 2xM.2 1x15pin D-sub 1xHDMI 1xDisplayPort 2xUSB 2.0 5xUSB 3.2 1xUSB-C 1xPS/2 1xRJ45 3xAudio port B760MD3HP1.0

Neto svars

0.7 kg

15pin D-sub

1

Audio port

3

Chipset

Intel B760 Express

DisplayPort

1

Form Factor

Micro-ATX

Frequency speed

5200 MHz

Full Description Line

Intel B760 Express|LGA1700|Micro-ATX|DDR5|5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.0|Vid

HDMI

1

Integrated LAN

Realtek (Gigabit)

Integrated audio

0

Integrated video

Depending on CPU

M.2

2

Memory slots

4

Memory type

DDR5

PCI-Express 3.0 1x

2

PCI-Express 4.0 16x

1

PS/2

1

RAID

SATA 0, 1, 5, 10

RJ45

1

SATA

+

Socket

LGA1700

TPM

Header

USB-C

+

USB-C

1

USB 2.0

2

USB 2.0

+

USB 3.0

+

USB 3.2

5

Unit Box Height

0.055

Unit Box Length

0.27

Unit Box Width

0.27

Unit Brutto Volume

0.004783 cubm

Vendor Homepage

www.gigabyte.com/Motherboard/B760M-D3HP#kf
