Outdoor LED Wall Floodlight XLED ONE XL, 43W 4400lm 3000K, IP44 White

Adjustability

Swivelling

Beam angle

Extreme wide beam >80°

Built-in diameter

- mm

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour consistency (McAdam ellipse)

SDCM3

Colour housing

White

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

3000 .. 3000 K

Colour temperature

3000 K

Conductor cross section

- mm²

Connection type

Other

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP44

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Energy efficiency class of the provided exchangeable built-in lamp

A++

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

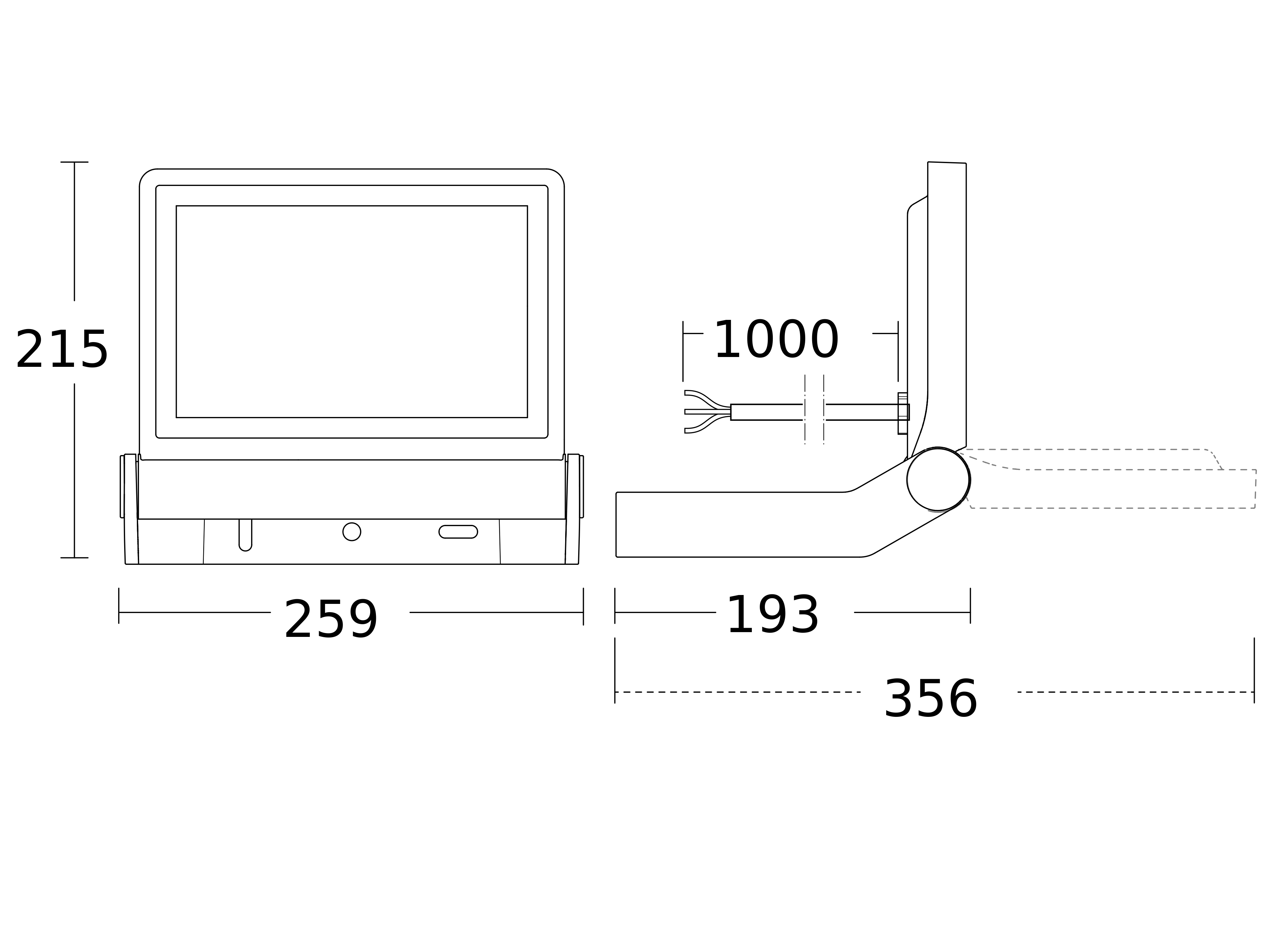

Height/depth

215 mm

Highest energy efficiency class of the exchangeable lamp

A++

Impact strength

IK03

Lamp efficacy

102.32 lm/W

Lamp holder

Other

Lamp type

LED not exchangeable

Length

193 mm

Light distributor

None

Light outlet

Direct

Light sharing

Symmetric

Lowest energy efficiency class of the exchangeable lamp

A

Luminaire efficacy

102.32 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux

4400 .. 4400 lm

Luminous intensity

- cd

Material cover

Glass transparent

Material housing

Aluminium

Max. system power

42.6 W

No dim function

+

Nominal voltage

230 .. 240 V

Number of poles

-

Outer diameter

- mm

Photobiological safety according to EN 62471

RG1

Power factor

-

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-20 .. 40 °C

Rated life time L70/B10 at 25 °C

- h

Rated life time L70/B50 at 25 °C

- h

Rated life time L80/B10 at 25 °C

- h

Rated life time L80/B50 at 25 °C

- h

Rated life time L90/B10 at 25 °C

- h

Rated life time L90/B50 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

4400 lm

Reflector

White

Suitable for built-in mounting

-

Suitable for ceiling mounting

+

Suitable for clamp-mounting

-

Suitable for lamp power

43 .. 43 W

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for number of lamps

-

Suitable for pedestal/floor mounting

+

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Suitable for wall mounting

+

Surface brushed

-

Total harmonic distortion

-

Type of control gear

LED operating device current-controlled

Voltage type

AC

Width

259 mm

With light sensor

-

With light source

+

With movement sensor

-
