Product parameters

Net Weight

1.61 kg
Height

115 mm
Length

170 mm

Sustainability

+
Width

182 mm

Additional parameters

1st secondary output voltage

24 .. 28.8 V
Built-in height

- mm
Built-in width

- mm
Degree of protection (IP)

IP20
Depth

145 mm
Direct mounting possible

+
Height

143 mm
Max. output current 1

10 A
Max. output current 2

- A
Max. output current 3

- A
Modular version

-
Nominal value output current 1

10 A
Nominal value output current 2

- A
Nominal value output current 3

- A
Nominal value output voltage 1

24 V
Nominal value output voltage 2

- V
Nominal value output voltage 3

- V

Output voltage stabilized

+
Performance level acc. EN ISO 13849-1

None
Power consumption

- VA
Power output

240 W
Rail mounting possible

+
Rated supply voltage at AC 50 Hz

100 .. 500 V
Rated supply voltage at AC 60 Hz

100 .. 500 V
SIL according to IEC 61508

None
Secondary voltage adjustable

+
Short-circuit-proof

+
Stabilized

+
Suitable for safety functions

+
Type of electric connection

Screw connection
Voltage type of supply voltage

AC/DC
Wall mounting possible

-
Width

86 mm
Width in number of modular spacings

-

Description

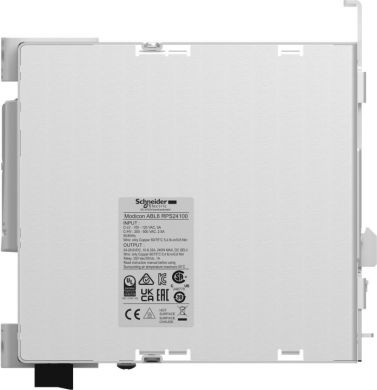

This product is part of the Modicon ABL range, an offer of power supplies for industrial use. It is a regulated switch mode power supply. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. It supplies direct current voltage and ensures a protection against overloads and short-circuits with automatic or manual restart. It has LED diagnostics indicator available in the front for troubleshooting instantly. It operates from minus 25degrees celcius to plus 50degrees celcius, and from 0meter to 2000meters. It measures 125mm high, 86mm wide and 145mm deep. It weighs 1kg. It is a power supply for industrial use. It conforms to CE marking, CCSAus, EAC, KC, RCM and UL certifications. GB2CD08, GB2CD12, GV2RT07, GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on 35mm DIN rail. It brings energy to your automated systems. Designed with extreme compactness for simple machines and applications.
