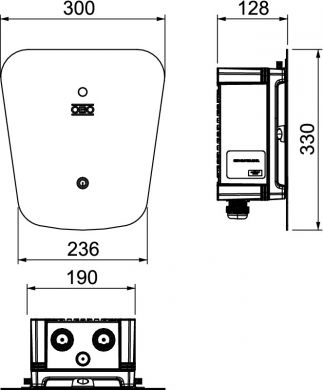

Charging station Ion Wallbox Key 22kW 3-phase, Type 2 cable 5m, Mode3 with key switch, without surge protection

Degree of protection (IP)

IP66

Depth

127 mm

Function access control

+

Height

330 mm

Impact strength

IK08

Installation side connection model

3-phase

Material housing

Plastic

Max. power per charging point

22 kW

Mounting method

Wall mounting

Nominal connection power

22 kW

Number of CEE socket outlets

0

Number of charging units

1

Number of earth leakage circuit breakers type A

0

Number of earth leakage circuit breakers type B

0

Number of household socket outlets

0

Number of socket outlets GB

0

Number of socket outlets Type 2

0

Number of socket outlets Type 3

0

Number of vehicle connectors CHAdeMO

0

Number of vehicle connectors GB AC

0

Number of vehicle connectors GB DC

0

Number of vehicle connectors Type 1

0

Number of vehicle connectors Type 1 CCS

0

Number of vehicle connectors Type 2

1

Number of vehicle connectors Type 2 CCS

0

Supporting protocol for CAN

-

Supporting protocol for MODBUS

+

Width

300 mm

With circuit breaker

-

With communication interface

+

With energy meter

-

With house connection box

-

With load management

-
