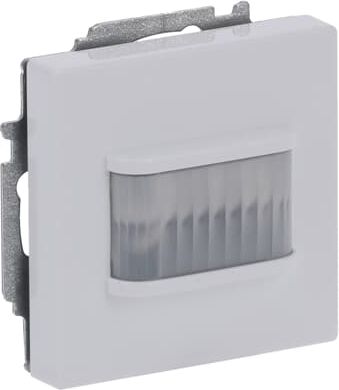

MD-F-1.0.1-84 Movement detector, studio white, Covers, future linear

Animal zone

+

Background monitoring

-

Built-in depth

8.5 mm

Built-in diameter

- mm

Built-in length

- mm

Built-in width

- mm

Bus connection included

+

Bus system KNX

-

Bus system KNX radio

+

Bus system LON

+

Bus system Powernet

+

Bus system radio frequent

+

Colour

White

Connection cable length

- mm

Creep-under protection

-

DALI-2 certified

-

Depth

30 mm

Detection angle horizontal

180 .. 180 °

Detection angle vertical

19 .. 19 °

Diameter

- mm

Diameter detection range on floor

- m

Height

71 mm

Material

Plastic

Material quality

Thermoplastic

Max. duty cycle

- min

Max. transmission range frontally

6 m

Max. transmission range sideways

- m

Min. depth of built-in installation box

9 mm

Min. switch-on time

- s

Model

Movement sensor

Mounting method

Other

Number of channels

-

Operation mode switch

-

Optimum mounting height

1.1 m

Other bus systems

free@home

RAL-number (akin)

9016

Radio frequent bidirectional

-

Response value luminosity adjustable

+

Staircase monitoring

+

Substation input

-

Suitable for ceiling mounting

-

Surface finishing

Glossy

Surface protection

Untreated

Switch-off delay self-learning

-

Switching power

- W

Teach-function for response value luminosity

-

Transparent

-

Voltage supply over bus

-

Wall mounting

-

Width

71 mm

With acoustic sensor

-

With connection cable

-
