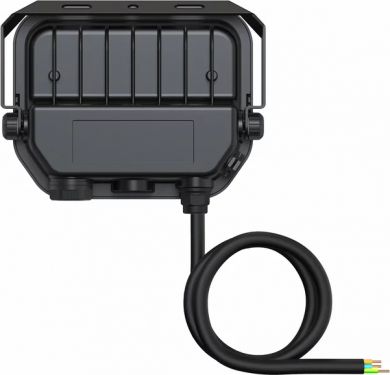

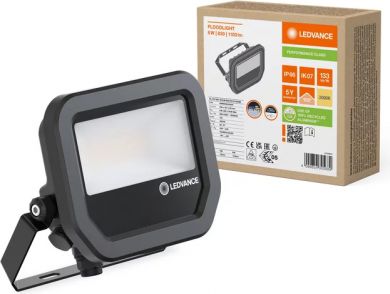

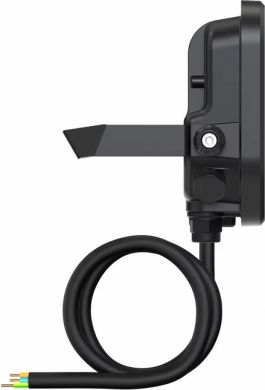

LED floodlight FL 10 P 8W 1K2LM 830 PS SY100 BK black

Adjustability

Swivelling

Beam angle

Open beam/diffuse

Colour consistency (McAdam ellipse)

SDCM5

Colour housing

Black

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 .. 4000 K

Colour temperature

1100 K

Connection type

Other

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP65

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

Impact strength

IK07

Lamp efficacy

110 lm/W

Lamp type

LED not exchangeable

Light distributor

Reflector

Light outlet

Direct

Light sharing

Symmetric

Luminaire efficacy

110 lm/W

Luminaire with limited surface temperature, sign "D“

+

Luminous flux

2200 .. 2200 lm

Material cover

Glass opal

Max. system power

20 W

No dim function

+

Number of poles

2

Photobiological safety according to EN 62471

RG0

Power factor

0.9

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-20 .. 40 °C

Rated life time L70/B10 at 25 °C

50000 h

Rated life time L70/B50 at 25 °C

50000 h

Rated life time L80/B10 at 25 °C

30000 h

Rated life time L80/B50 at 25 °C

30000 h

Rated life time L90/B10 at 25 °C

15000 h

Rated life time L90/B50 at 25 °C

15000 h

Rated luminous flux acc. IEC 62722-2-1

2200 lm

Reflector

None

Suitable for built-in mounting

-

Suitable for ceiling mounting

-

Suitable for clamp-mounting

-

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for pedestal/floor mounting

-

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Suitable for wall mounting

+

Surface brushed

-

Surface protection

Powder coating

Total harmonic distortion

19

Type of control gear

Electronic ballast

Type of wiring

Ending

Voltage type

AC

With light sensor

+

With light source

+

With movement sensor

+
