Outdoor luminaire GL80 LED iHF Cubo With sensor, 160° 1-5m 2-2000lux IP44 3000K 693lm Silver

Beam angle

Extreme wide beam >80°

Built-in diameter

- mm

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour housing

Silver

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

3000 .. 3000 K

Colour temperature

3000 K

Conductor cross section

- mm²

Connection type

Other

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP44

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

+

Dimming with push-button

-

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Energy efficiency class of the provided exchangeable built-in lamp

A++

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

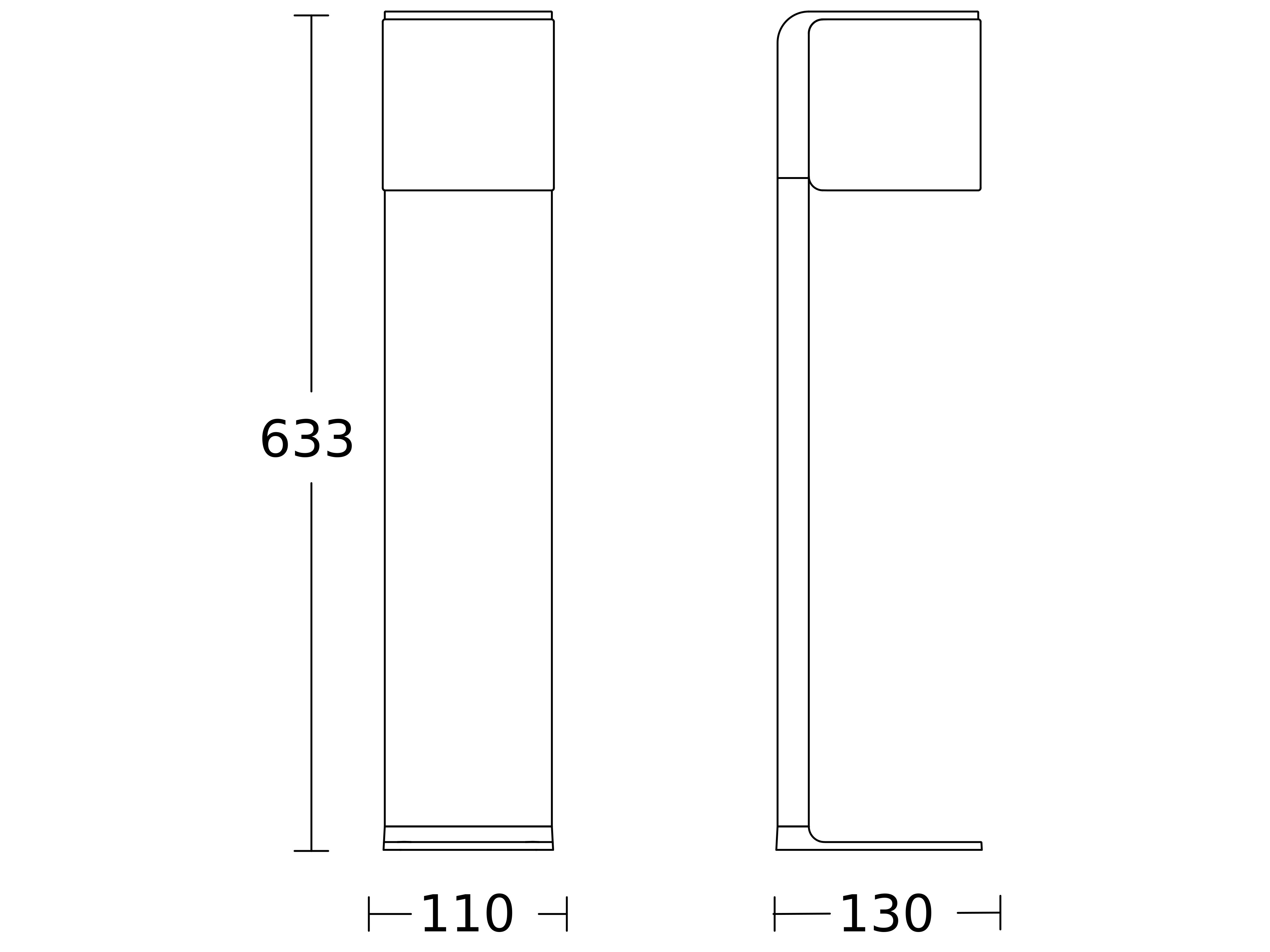

Height/depth

633 mm

Highest energy efficiency class of the exchangeable lamp

A++

Impact strength

IK03

Lamp holder

Other

Lamp type

LED not exchangeable

Length

130 mm

Light distributor

None

Light outlet

Direct

Light sharing

Symmetric

Lowest energy efficiency class of the exchangeable lamp

A

Luminaire efficacy

72.94 lm/W

Luminaire with limited surface temperature, sign "D“

-

Material cover

Plastic, opal

Material housing

Aluminium

Max. system power

- W

No dim function

-

Nominal voltage

220 .. 240 V

Number of poles

2

Outer diameter

- mm

Power factor

0.85

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-20 .. 40 °C

Rated life time L70/B10 at 25 °C

- h

Rated life time L70/B50 at 25 °C

- h

Rated life time L80/B10 at 25 °C

- h

Rated life time L80/B50 at 25 °C

- h

Rated life time L90/B10 at 25 °C

- h

Rated life time L90/B50 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

693 lm

Suitable for built-in mounting

-

Suitable for ceiling mounting

-

Suitable for emergency lighting

-

Suitable for lamp power

9.5 .. 9.5 W

Suitable for light line configuration

-

Suitable for number of lamps

-

Suitable for surface mounting

-

Suitable for suspended mounting

-

Suitable for wall mounting

-

Type of control gear

LED operating device current-controlled

Type of grid

None

Type of wiring

Suitable for through wiring

Voltage type

AC

Width

110 mm

With air slots

-

With light sensor

+

With light source

+

With movement sensor

+
