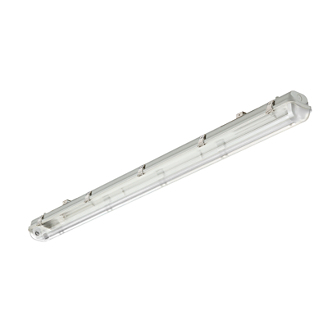

WT050C 2xTLED L1500 LEDtube housing LEDINAIRE Waterproof Ledinaire

Accessory

-

Beam angle

Wide beam 41-80°

Colour

Grey

Colour housing

Grey

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 .. 4000 K

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP65

Diameter

- mm

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

Height

70 mm

Height/depth

46 mm

Impact strength

IK08

Lamp holder

Other

Lamp type

LED not exchangeable

Length

1196 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Luminaire efficacy

110 lm/W

Luminaire with limited surface temperature, sign "D“

-

Material

Plastic

Material cover

Plastic, opal

Material housing

Plastic

Max. system power

33 W

No dim function

+

Nominal voltage

220 .. 220 V

Number of poles

2

Power factor

0.9

Power supply energy efficiency index (EEI)

A3

Protection class

II

Rated ambient temperature acc. IEC62722-2-1

25 .. 25 °C

Rated life time L70/B10 at 25 °C

30000 h

Rated luminous flux acc. IEC 62722-2-1

3600 lm

Spare part

-

Suitable for built-in mounting

-

Suitable for ceiling mounting

+

Suitable for emergency lighting

-

Suitable for lamp power

33 .. 33 W

Suitable for light line configuration

-

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for wall mounting

-

Transparent

+

Type of accessory

Protective housing

Type of control gear

LED operating device current-controlled

Type of grid

Other

Type of wiring

Ending

Voltage type

AC

Width

36 mm

With air slots

-

With light sensor

-

With light source

+

With movement sensor

-
