Luminaire BN021C LED15S/840 L900 1600Lm 15W LEDINAIRE Batten

Beam angle

Extreme wide beam >80°

Beam angle adjustable

No

Built-in height/depth

0 mm

Colour housing

White

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 K

Colour temperature

4000 .. 4000 K

Colour temperature adjustable

No

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Casambi

-

Compatible with Google Assistant

-

Conductor cross section

0.5 mm²

Connection type

Push-in clamp

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Diameter

- mm

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Electrical connection with connector system

-

Emergency power supply integrated

-

Energy efficiency class of the light source according to EU regulation 2019/2015

E

Exchangeable control gear

-

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

7.5 %

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

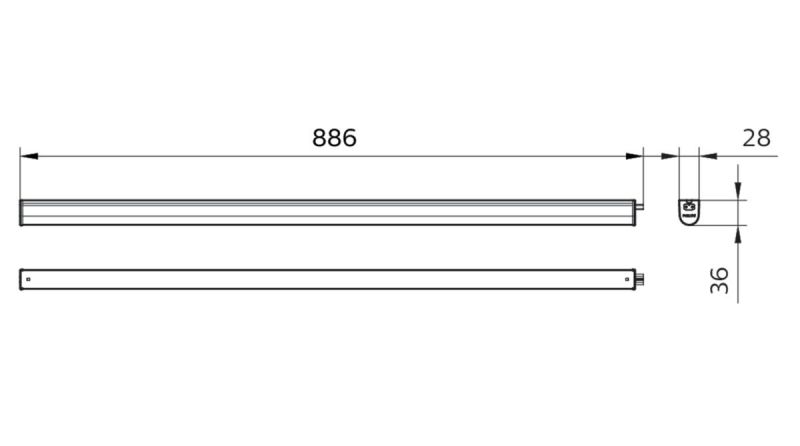

Height/depth

36 mm

IFTTT support available

-

Impact strength

IK02

LED nominal current at constant current

102 .. 112 mA

Lamp holder

Other

Lamp type

LED not exchangeable

Length

896 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

65 %

Luminaire efficacy

80 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux adjustable

No

Material

Plastic

Material cover

Plastic, opal

Material housing

Plastic

Max. system power

10 W

No dim function

+

Nominal current

70 .. 70 mA

Nominal voltage

220 .. 240 V

Number of poles

2

Operation by Bluetooth

-

Power factor

0.9

Protection class

II

Rated ambient temperature acc. IEC62722-2-1

0 .. 35 °C

Rated life time L70/B50 at 25 °C

20000 h

Rated life time L80/B10 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

950 lm

Suitable for built-in mounting

-

Suitable for ceiling mounting

+

Suitable for emergency lighting

-

Suitable for light line configuration

+

Suitable for number of lamps

1

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for wall mounting

+

Type of control gear

LED operating device current-controlled

Type of grid

None

Type of wiring

Through wiring included

Voltage type

AC

Width

22 mm

With air slots

-

With lamp protection basket

-

With light sensor

-

With light source

-

With movement sensor

-

With switch

-
