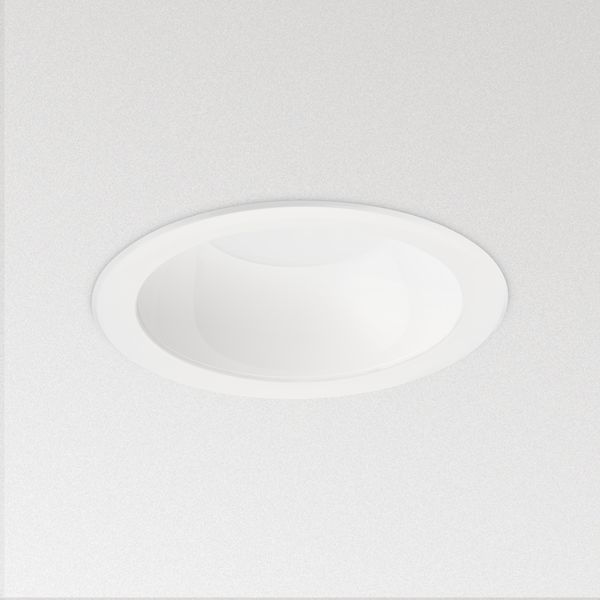

Downlight DN140B LED10S/830 PSU WR IP54 PI6 Coreline

Product ID: 4300274 In Stock

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)
  • e-store price

    58.52 / pcs.

  • Quantity

  • Total price VAT included (21%)

    58.52

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.
  • Riga (Marupe)

    5

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

Product details

* The displayed pictures may not match the product
  • Manufacturer

    Philips

  • Manufacturers ID

    911401632605

  • EAN

    8710163325965

Product parameters

  • Net Weight

    0.42 kg

  • Diameter Ø

    162 mm

  • Dimmable

    No

  • Height

    100 mm

  • Impact protection

    IK02

  • Ingress Protection

    IP20/54

  • LED

    Yes

  • Lifetime L70B50

    50000 h

  • Luminaire output

    1100 Lm

  • Power

    9.5 W

  • System efficacy

    116 Lm/W

Additional parameters

+
  • Adjustability

    Not adjustable

  • Beam angle

    Wide beam 41-80°

  • Built-in diameter

    155 mm

  • Built-in height/depth

    200 mm

  • Colour consistency (McAdam ellipse)

    SDCM5

  • Colour housing

    Multi-coloured

  • Colour of light

    White

  • Colour rendering index CRI

    80-89

  • Colour temperature

    3000 K

  • Colour temperature

    3000 .. 3000 K

  • Conductor cross section

    0.75 mm²

  • Connectable conductor cross section

    0.75 .. 1.5 mm²

  • Connection type

    Blade terminal

  • Control gear included

    +

  • Covering of the luminaire with thermally insulating material possible

    -

  • Degree of protection (IP)

    IP54

  • Dimming 0-10 V

    -

  • Dimming 1-10 V

    -

  • Dimming DALI

    -

  • Dimming DMX

    -

  • Dimming DSI

    -

  • Dimming GPRS

    -

  • Dimming LineSwitch

    -

  • Dimming RF

    -

  • Dimming Sine Wave Reduction

    -

  • Dimming Touch and Dim

    -

  • Dimming Zigbee

    -

  • Dimming depending on control gear

    +

  • Dimming mains voltage modulation

    -

  • Dimming manufacturer's proprietary system

    -

  • Dimming phase cut-off

    -

  • Dimming phase cut-on

    -

  • Dimming potentiometer (integrated)

    -

  • Dimming programmable

    -

  • Dimming with push-button

    -

  • Filament test according to IEC 60695-2-11

    850 °C - 30 s

  • Fit for monitor workplace acc. EN 12464-1

    -

  • Height/depth

    100 mm

  • Impact strength

    IK02

  • LED nominal current at constant current

    125 .. 125 mA

  • Lamp efficacy

    116 lm/W

  • Lamp holder

    None

  • Lamp type

    LED not exchangeable

  • Light distributor

    Reflector

  • Light outlet

    Direct

  • Light sharing

    Symmetric

  • Luminaire efficacy

    115 lm/W

  • Luminaire with limited surface temperature, sign "D“

    -

  • Luminous flux

    1100 .. 1100 lm

  • Luminous intensity

    620 cd

  • Material cover

    Glass transparent

  • Material housing

    Aluminium

  • Max. system power

    9.5 W

  • No dim function

    +

  • Nominal voltage

    220 .. 240 V

  • Number of poles

    2

  • Outer diameter

    162 mm

  • Photobiological safety according to EN 62471

    RG1

  • Power factor

    0.95

  • Protection class

    I

  • Rated ambient temperature acc. IEC62722-2-1

    -20 .. 40 °C

  • Rated life time L70/B10 at 25 °C

    46000 h

  • Rated life time L70/B50 at 25 °C

    50000 h

  • Rated life time L80/B10 at 25 °C

    32000 h

  • Rated life time L80/B50 at 25 °C

    35000 h

  • Rated life time L90/B10 at 25 °C

    16500 h

  • Rated life time L90/B50 at 25 °C

    18000 h

  • Rated luminous flux acc. IEC 62722-2-1

    1100 lm

  • Reflector

    White

  • Suitable for built-in mounting

    +

  • Suitable for ceiling mounting

    +

  • Suitable for clamp-mounting

    -

  • Suitable for light-track mounting

    -

  • Suitable for low voltage cable system

    -

  • Suitable for number of lamps

    1

  • Suitable for pedestal/floor mounting

    -

  • Suitable for surface mounting

    -

  • Suitable for suspended mounting

    -

  • Suitable for traverse mounting

    -

  • Suitable for wall mounting

    -

  • Surface brushed

    -

  • Surface protection

    Powder coating

  • Total harmonic distortion

    0.2

  • Type of control gear

    LED operating device current-controlled

  • Type of wiring

    Suitable for through wiring

  • Voltage type

    AC

  • With light sensor

    -

  • With light source

    +

  • With movement sensor

    -
