DORISA LED mirror light, 4000K, IP44, chrome

Adjustability

Not adjustable

Beam angle

Extreme wide beam >80°

Beam angle adjustable

No

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour housing

Chrome

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 .. 4000 K

Colour temperature

4000 K

Colour temperature adjustable

No

Conductor cross section

- mm²

Connectable conductor cross section

1.5 .. 1.5 mm²

Constant luminous flux control

-

Control gear included

-

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP44

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Fit for monitor workplace acc. EN 12464-1

-

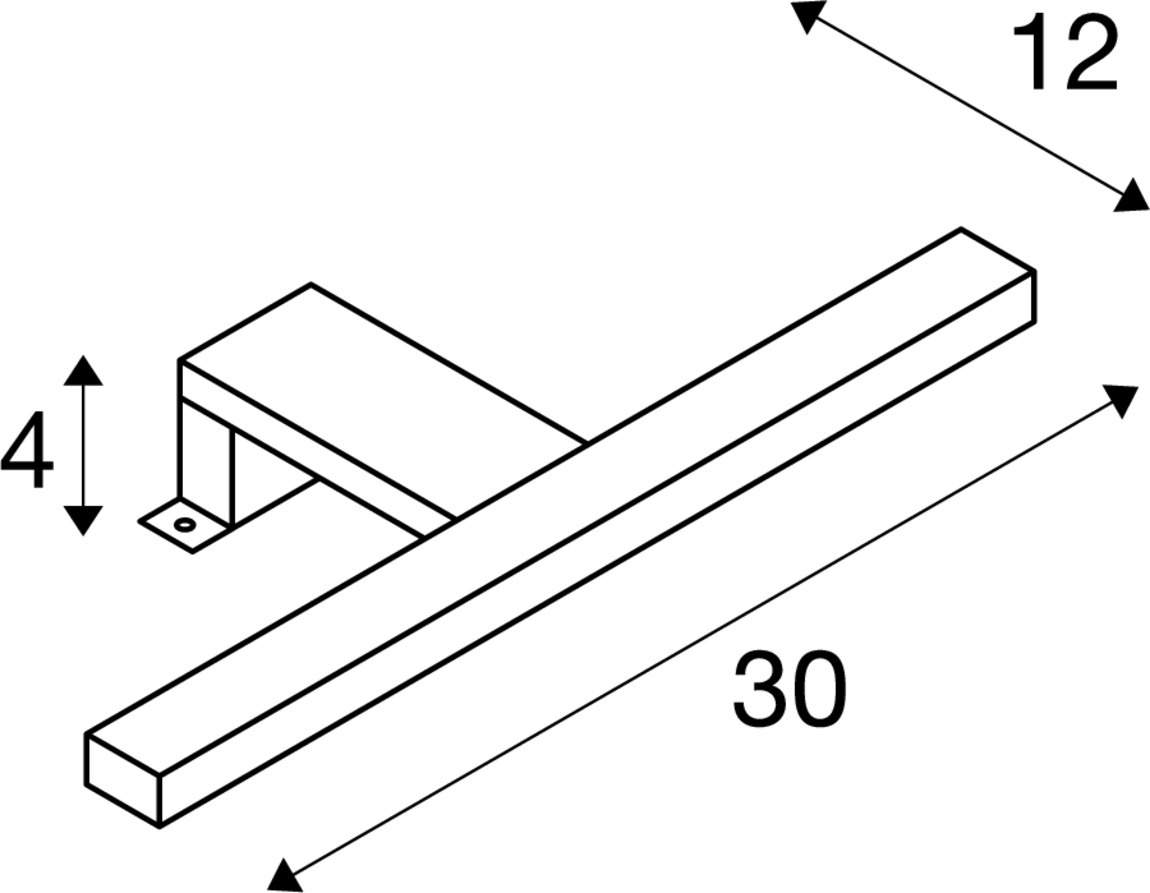

Height/depth

40 mm

IFTTT support available

-

LED nominal current at constant current

340 .. 340 mA

Lamp holder

Other

Lamp type

LED not exchangeable

Length

300 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Luminaire efficacy

53.84 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux

280 .. 280 lm

Luminous flux adjustable

No

Luminous intensity

- cd

Material cover

Plastic matt/satinized

Material housing

Aluminium

Max. system power

5.2 W

No dim function

+

Nominal current

340 .. 340 mA

Nominal voltage

200 .. 240 V

Number of poles

-

Outer diameter

- mm

Power factor

-

Protection class

II

Rated life time L70/B50 at 25 °C

30000 h

Rated life time L80/B10 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

280 lm

Reflector

None

Reflector colour

Silver

Suitable for built-in mounting

-

Suitable for ceiling mounting

-

Suitable for clamp-mounting

+

Suitable for lamp power

4 .. 4 W

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for number of lamps

1

Suitable for pedestal/floor mounting

-

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Suitable for wall mounting

-

Surface brushed

-

Surface protection

Lacquered

Total harmonic distortion

-

Type of control gear

Not required

Type of wiring

Ending

Voltage type

AC

Wall mounting

-

Width

120 mm

With light sensor

-

With light source

+

With movement sensor

-
