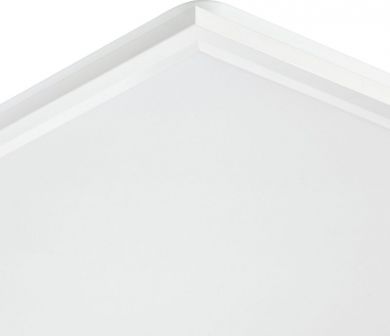

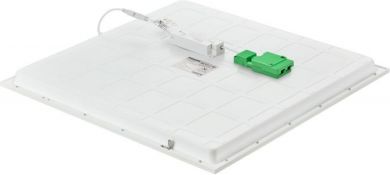

RC132V G6 36S/840 PSU W60L60 NOC

Beam angle

Open beam/diffuse

Beam angle adjustable

No

Built-in diameter

- mm

Built-in height/depth

120 mm

Built-in length

595 mm

Built-in width

595 mm

Colour consistency (McAdam ellipse)

SDCM3

Colour housing

White

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 .. 4000 K

Colour temperature adjustable

No

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Casambi

-

Compatible with Google Assistant

-

Conductor cross section

0.75 mm²

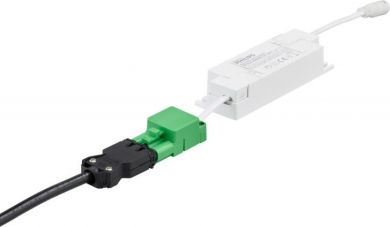

Connection type

Push-in clamp

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DALI-2

-

Dimming DMX

-

Dimming DSI

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy efficiency class of the light source according to EU regulation 2019/2015

C

Exchangeable control gear

-

Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

5 %

Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)

- %

Filament test according to IEC 60695-2-11

650 °C - 30 s

Fit for monitor workplace acc. EN 12464-1

-

Flickering value Pst LM

1

Height/depth

62 mm

Housing surface protection

Powder coating

IFTTT support available

-

Impact strength

IK03

Lamp holder

Other

Lamp type

LED not exchangeable

Length

595 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

90 %

Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)

- %

Luminaire efficacy

138 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux adjustable

No

Luminous intensity

- cd

Material cover

Plastic, opal

Material housing

Steel

Max. number of luminaires per miniature circuit breaker B16 (MCB)

30

Max. number of luminaires per miniature circuit breaker C16 (MCB)

51

Max. system power

26 W

Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)

-

No dim function

+

Nominal current

130 .. 130 mA

Nominal voltage

220 .. 240 V

Number of poles

2

Operation by Bluetooth

-

Outer diameter

- mm

Photobiological safety according to EN 62471

RG0

Power factor

0.9

Protection class

II

Rated ambient temperature acc. IEC62722-2-1

25 .. 25 °C

Rated life time L70/B50 at 25 °C

100000 h

Rated luminous flux acc. IEC 62722-2-1

3600 lm

Stroboscope effect value SVM

0.4

Suitable for built-in mounting

+

Suitable for ceiling mounting

+

Suitable for emergency lighting

-

Suitable for light line configuration

-

Suitable for number of lamps

-

Suitable for surface mounting

+

Suitable for suspended mounting

+

Total harmonic distortion

20

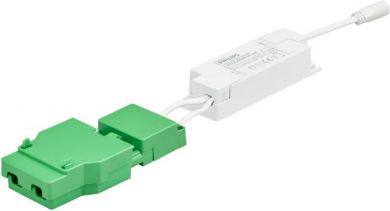

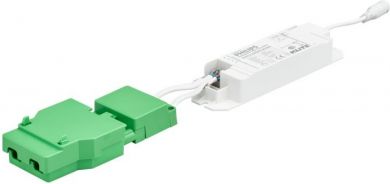

Type of control gear

LED operating device current-controlled

Type of grid

None

Type of wiring

Ending

Unified Glare Ratio (UGR)

22

Voltage type

AC

Wall mounting

-

Width

595 mm

With air slots

-

With light sensor

-

With light source

+

With movement sensor

-
