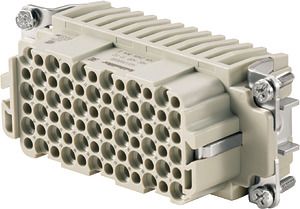

HDC HDD 72 FC

Connectable conductor cross section fine-strand with cable end sleeve

0.5 .. 2.5 mm²

Connectable conductor cross section fine-strand without cable end sleeve

0.5 .. 2.5 mm²

Connectable conductor cross section multi-wired

0.14 .. 2.5 mm²

Connectable conductor cross section solid-core

0.5 .. 2.5 mm²

Contact type

Bus

Depth

84.5 mm

Height

33 mm

Inflammability class of insulation material acc. with UL94

V0

Material connector of connector insert

Thermoplastic

Material of contact insert

Thermoplastic

Number of poles

72

Pollution degree

3

Rated current In

10 A

Rated surge voltage

4 kV

Rated voltage

250 V

Type of electric connection

Crimp connection

Width

34 mm

With protective conductor

+

With wire protection

-
