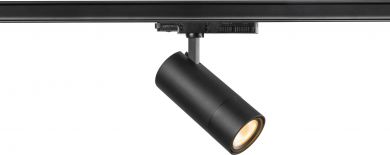

Trackspot V 3Ph. 25/30/35W 927/930/940 24°-60° black

Adjustability

Not adjustable

Beam angle

Medium beam 21-40°

Beam angle adjustable

No

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour housing

Black

Colour of light

White

Colour rendering index CRI

90-100

Colour temperature

2700 .. 3000 K

Colour temperature adjustable

Positions

Conductor cross section

- mm²

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Fit for monitor workplace acc. EN 12464-1

-

Height/depth

145 mm

IFTTT support available

-

Impact strength

IK05

Lamp holder

Other

Lamp type

LED not exchangeable

Length

185 mm

Light distributor

Other

Light outlet

Direct

Light sharing

Symmetric

Luminaire efficacy

88.29 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux

3090 .. 3090 lm

Luminous flux adjustable

No

Luminous intensity

- cd

Material cover

Plastic matt/satinized

Material housing

Aluminium

Max. system power

35 W

No dim function

+

Nominal voltage

220 .. 240 V

Number of poles

-

Outer diameter

80 mm

Power factor

-

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-20 .. 40 °C

Rated life time L70/B50 at 25 °C

50000 h

Rated luminous flux acc. IEC 62722-2-1

3090 lm

Reflector

Other

Reflector colour

Silver

Suitable for built-in mounting

-

Suitable for ceiling mounting

+

Suitable for clamp-mounting

+

Suitable for lamp power

35 .. 35 W

Suitable for light-track mounting

+

Suitable for low voltage cable system

-

Suitable for number of lamps

1

Suitable for pedestal/floor mounting

-

Suitable for surface mounting

-

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Surface brushed

-

Surface protection

Lacquered

Total harmonic distortion

-

Type of control gear

LED operating device current-controlled

Type of wiring

Ending

Voltage type

AC

Wall mounting

-

Width

80 mm

With light sensor

-

With light source

+

With movement sensor

-
