PS 2,5/12 Listwa zaciskowa 2,5/12 biała 10A szybkozłaczka

Closing plate required

-

Colour

White

Connectable conductor cross section fine-strand with cable end sleeve

0.5 .. 1.5 mm²

Connectable conductor cross section fine-strand without cable end sleeve

0.5 .. 2.5 mm²

Connectable conductor cross section solid-core

0.5 .. 2.5 mm²

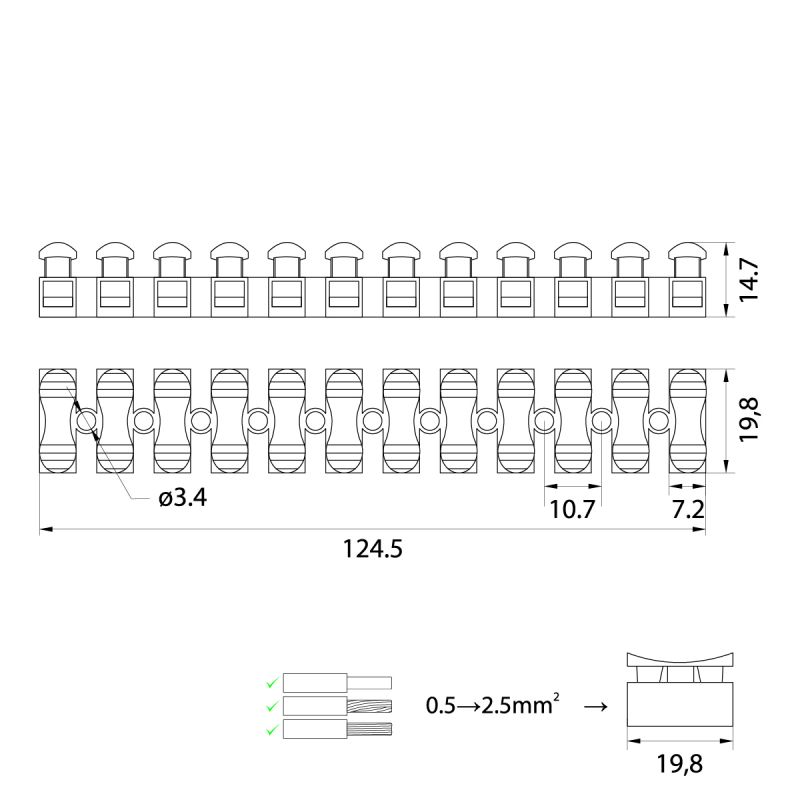

Depth

14.7 mm

Drill hole distance centrically

10.7 mm

Explosion-tested version 'Ex e'

-

Halogen free

+

Height

19.8 mm

Mounting method

Direct mounting

Number of clamp positions per pole

2

Number of poles

12

Rated current In

10 A

Rated voltage

230 V

Transparent

-

Type of electrical connection 1

Push-in clamp connection

Type of electrical connection 2

Push-in clamp connection

Width

124.5 mm
