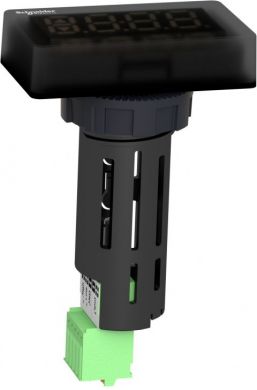

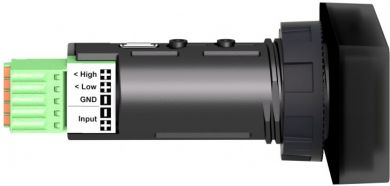

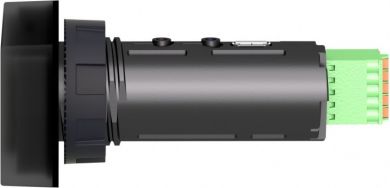

Display for bus system

Additional software components, loadable

-

Built-in depth

78.2 mm

Certified for UL hazardous location class I

-

Certified for UL hazardous location class II

-

Certified for UL hazardous location class III

-

Certified for UL hazardous location division 1

-

Certified for UL hazardous location division 2

-

Certified for UL hazardous location group A (acetylene)

-

Certified for UL hazardous location group B (hydrogen)

-

Certified for UL hazardous location group C (ethylene)

-

Certified for UL hazardous location group D (propane)

-

Certified for UL hazardous location group E (metal dusts)

-

Certified for UL hazardous location group F (carbonaceous dusts)

-

Certified for UL hazardous location group G (non-conductive dusts)

-

Degree of protection (IP), front side

IP65

Degree of protection (NEMA), front side

Other

Height of the front

29.5 mm

IO link master

-

Number of HW-interfaces RS-232

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

0

Number of HW-interfaces USB

1

Number of HW-interfaces Wireless

0

Number of HW-interfaces industrial Ethernet

0

Number of HW-interfaces other

0

Number of HW-interfaces parallel

0

Number of HW-interfaces serial TTY

0

Number of buttons with LED

0

Number of colours of the display

1

Number of function buttons, programmable

0

Number of grey-scales/blue-scales of display

0

Number of interfaces PROFINET

0

Number of online languages

0

Number of password levels

0

Number of pixels, horizontal

0

Number of pixels, vertical

0

Number of system buttons

0

Operation temperature

-20 .. 60 °C

Process default value (input) possible

-

Process value representation (output) possible

+

Radio standard Bluetooth

-

Radio standard GPRS

-

Radio standard GSM

-

Radio standard UMTS

-

Radio standard WLAN 802.11

-

Rail mounting possible

-

Screen diagonal

0.86 inch

Suitable for safety functions

-

Supply voltage AC 50 Hz

0 .. 0 V

Supply voltage AC 60 Hz

0 .. 0 V

Supply voltage DC

4 .. 20 V

Supporting protocol for AS-Interface Safety at Work

-

Supporting protocol for ASI

-

Supporting protocol for CAN

-

Supporting protocol for Data-Highway

-

Supporting protocol for DeviceNet

-

Supporting protocol for DeviceNet Safety

-

Supporting protocol for EtherCAT

-

Supporting protocol for EtherNet/IP

-

Supporting protocol for Foundation Fieldbus

-

Supporting protocol for INTERBUS

-

Supporting protocol for INTERBUS-Safety

-

Supporting protocol for KNX

-

Supporting protocol for LON

-

Supporting protocol for MODBUS

-

Supporting protocol for PROFIBUS

-

Supporting protocol for PROFINET CBA

-

Supporting protocol for PROFINET IO

-

Supporting protocol for PROFIsafe

-

Supporting protocol for SERCOS

-

Supporting protocol for SUCONET

-

Supporting protocol for SafetyBUS p

-

Supporting protocol for TCP/IP

-

Supporting protocol for other bus systems

+

Touch technology

None

Type of display

Other

Useful project memory/user memory

0 kByte

Voltage type of supply voltage

DC

Wall mounting/direct mounting

-

Width of the front

51.5 mm

With SW interfaces

+

With alpha numeric keyboard

-

With colour display

+

With message indication

-

With message system (incl. buffer and confirmation)

-

With numeric keyboard

-

With printer output

-

With recipes

-
