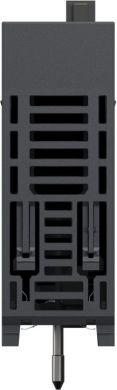

Analog input module M340, 4 inputs+/- 40mV. range of product: Modicon M340 automation platform - product or component type: analog input module - product specific application: for severe environments - input output isolation: isolated - input level:

Analogue inputs configurable

+

Analogue outputs configurable

-

Appendant operation agent (Ex ia)

+

Appendant operation agent (Ex ib)

+

Category according to EN 954-1

1

Depth

150 mm

Explosion safety category for dust

Other

Explosion safety category for gas

Other

Height

100 mm

Input, current

-

Input, resistance thermometer

+

Input, resistor

+

Input, thermocouple

+

Input, voltage

+

Input signal, configurable

+

Number of analogue inputs

4

Number of analogue outputs

0

Output, current

-

Output, voltage

-

Output signal configurable

-

Performance level acc. EN ISO 13849-1

None

Resolution of the analogue inputs

16 Bit

SIL according to IEC 61508

None

Suitable for safety functions

+

Type of electric connection

Plug-in connection

Width

32 mm
