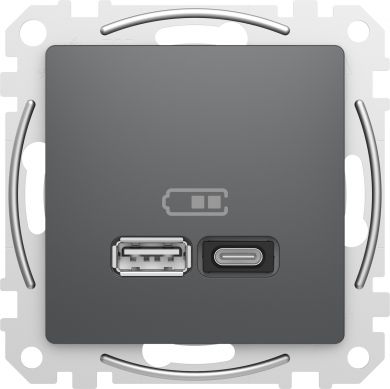

Name: USB charger, Sedna Design & Elements, type A+C, 3A, 45W, PRO, anthracite
Brand: Schneider Electric
SKU: 2102517
Price: 64.54 EUR
Availability: InStock

Product parameters Additional parameters Video Related products

Product parameters

Net Weight

0.13 kg
Product series

Sedna Design
Mounting method

Flush mounted
Socket type

USB
Colour

Black
Number of seats

2
Ingress Protection

IP20

Length

37 mm
Width

71 mm
Height

71 mm
Sustainability

+

Additional parameters

Antibacterial treatment

-
Colour

Anthracite
Connection type

Screwed terminal
Depth of device

43 mm
Frequency

50 .. 60 Hz
Height of device

73 mm
Impact strength

IK02
Max. output current

3000 mA
Min. depth of built-in installation box

32 mm
Model

Other
Mounting method

Flush mounted (plaster)

Number of outputs

2
Number of ports USB-C

1
Operating voltage

220 .. 240 V
Output voltage

5 .. 20 V
Output voltage

20 V
Power consumption

0.08 W
RAL-number

7021
Suitable for degree of protection (IP)

IP20
Type of USB power supply

AC
Width of device

73 mm

Description

This Schneider Electric Sedna Design & Elements device is a USB charger type A+C 3A 45W anthracite. This is compatibile with mobiles/tablets. It has a 5VDC 3A USB type A+C. It has good wiring capacity for rigid, solid or flexible cable with 2 x 0.75 to 2 x 2.5 sq.mm cable cross section. The wire stripping length is 8mm. Its Ue operating voltage of 220-240 VAC with 50/60Hz. The power consumption is 10.5W. This device enables flush mounting. The dimensions are (W) 73mm x (H) 73mm x (D) 37mm with embedding depth of 32mm. It weighs 130g. The color of this device is anthracite with matt finish. Its made of PC+ABS material. The operating temperature is from 0°C up to +40°C and storage temperature is from -5°C up to +50°C. It reaches IP20 and IK04 degrees of protection. This product comes in a set of 1 box with eurohole packaging. Sedna Design and Elements is a premium range, with contemporary colors and textures that bring the look and feel of wood, stone, metal, and glass into your customer's homes. Sedna Design and Elements offers all of the modern functions you need to exceed your customers expectations and bring greater comfort and convenience to people of all ages. This device is compliant with EAC certification and ETSI EN 301 489-4 standard .
