Cavity wall box HV 60 Ø68x61 mm

Product ID: 1600027 In Stock
Sale On Sale -30% Discount
Obo Bettermann Cavity wall box HV 60 Ø68x61 mm 2003442 | Elektrika.lv
Sale On Sale -30% Discount
Obo Bettermann Cavity wall box HV 60 Ø68x61 mm 2003442 | Elektrika.lv

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)

  • Regular price

    1.16 € / pcs. -30 %

  • e-store price

    0.81 € / pcs.

  • Quantity

  • Total price VAT included (21%)

    0.81 €

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.

  • Riga (Marupe)

    61

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

Product details

* The displayed pictures may not match the product

Technical information

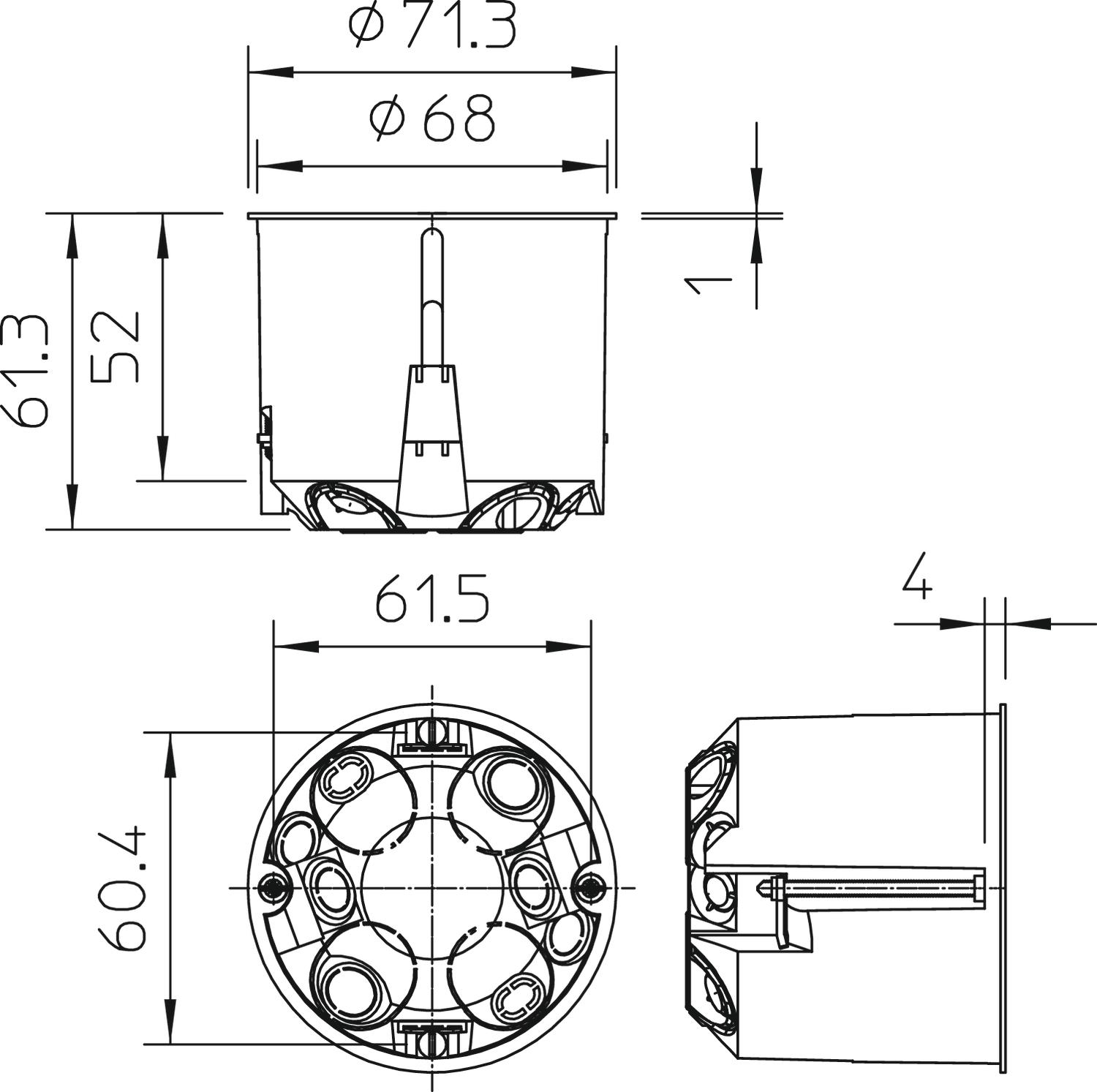

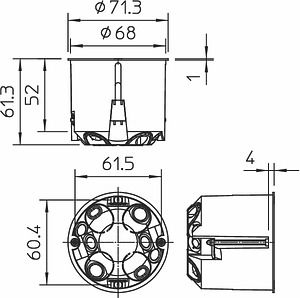

Dimensioned Drawing

Product parameters Additional parameters

Product parameters

  • Net Weight

    0.027 kg

  • Colour

    Orange

  • Diameter Ø

    68 mm

  • Dimensions

    Ø68X61 mm

  • Height

    61 mm

  • Mounting method

    Flush mounted

  • Number of seats

    1

  • With lid

    No

Additional parameters

+

  • Can be coupled

    -

  • Circuit integrity

    None

  • Clamp position fixed

    -

  • Colour

    Orange

  • Construction type

    Device connection box (round/square)

  • Cover attachment

    Other

  • Degree of protection (IP)

    IP30

  • Depth

    61 .. 61 mm

  • Diameter

    68 mm

  • Equipped with

    None

  • For number of electric fittings

    1

  • For tube diameter

    20 mm

  • Halogen free

    +

  • Housing feed-through by break-out opening

    +

  • Housing feed-through by nozzle

    -

  • Housing feed-through by seal membrane

    -

  • Housing feed-through by step membrane

    -

  • Inlet from the rear

    +

  • Luminaire hook mounting

    -

  • Material

    Plastic

  • Max. conductor cross section

    2.5 mm²

  • Model

    Single

  • Mounting method

    Hollow wall

  • Mounting switching equipment

    Screwing

  • Nozzle

    None

  • Number of included spouts

    -

  • Number of inlets

    8

  • Number of poles of the clamp

    -

  • Pipe locking

    -

  • Pipe locking optional

    -

  • Provided with revolving ring

    -

  • Sealable

    -

  • Shape

    Round

  • Surface protection

    Untreated

  • Transparent cover

    -

  • Wind proof

    -

  • With nail lugs

    -

  • With screening

    -

  • With screws

    +
