PH-4B.2 Hermetic box IP65 248x198x116mm

Product ID: 1642038 In Stock
ELEKTRO-PLAST PH-4B.2 Hermetic box IP65 248x198x116mm 28.45 | Elektrika.lv
ELEKTRO-PLAST PH-4B.2 Hermetic box IP65 248x198x116mm 28.45 | Elektrika.lv

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)

  • e-store price

    12.71 € / pcs.

  • Quantity

  • Total price VAT included (21%)

    12.71 €

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.

  • Riga (Marupe)

    0

  • Daugavpils

    1

  • Valmiera

    0

  • Ventspils

    0

Product details

* The displayed pictures may not match the product

Technical information

Certificate

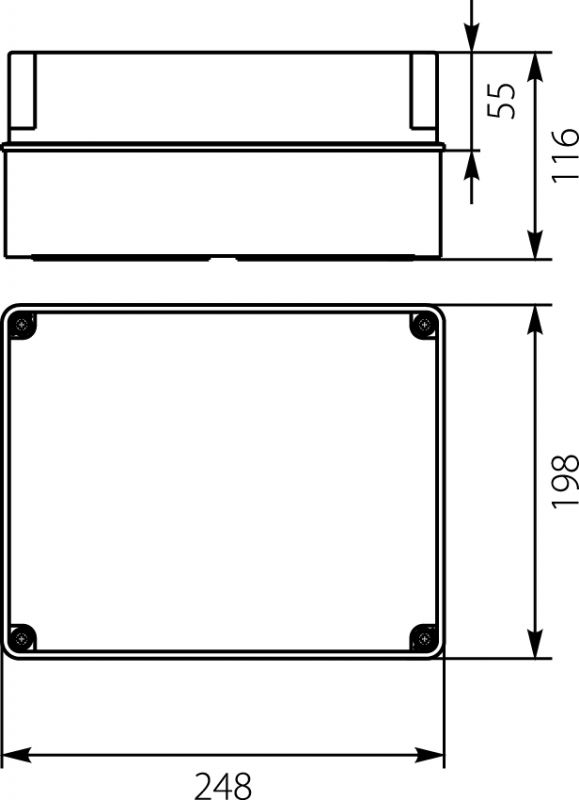

Dimensioned Drawing

Product parameters Additional parameters

Product parameters

  • Net Weight

    0.52 kg

  • Colour

    Grey

  • Height

    116 mm

  • Ingress Protection

    IP65

  • Length

    248 mm

  • Mounting method

    Surface mounted

  • Width

    198 mm

  • With lid

    Yes

Additional parameters

+

  • Castable

    -

  • Casting compound included

    -

  • Circuit integrity

    None

  • Colour

    Grey

  • Cover attachment

    Screwed

  • Cover model

    Blind cover

  • Degree of protection (IP)

    IP65

  • Degree of protection (NEMA)

    12

  • Depth

    116 mm

  • Diameter

    0 mm

  • Equipped with

    None

  • Explosion-tested version

    -

  • For Ex-Zone dust

    None

  • For Ex-zone gas

    None

  • For tube diameter

    Other

  • Halogen free

    +

  • Inlet from the rear

    -

  • Length

    248 mm

  • Material

    Plastic

  • Max. conductor cross section

    10 mm²

  • Mounting in the soil

    -

  • Mounting method

    Wall-/ceiling mounting

  • Mounting under water

    -

  • Number of inlets

    12

  • Rated insulation voltage Ui

    500 V

  • Sealable

    +

  • Shape

    Rectangular

  • Surface protection

    Untreated

  • Tackable

    -

  • Transparent cover

    -

  • Type of housing feed-through

    Preembossing

  • Weatherproof

    -

  • Width

    198 mm

  • With screening

    -

  • Working temperature

    -25 .. 60 °C
