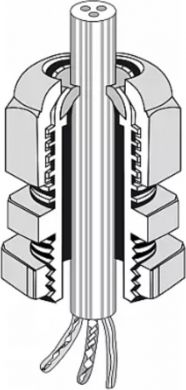

Cable gland IP66 M20 light-grey

Product ID: 1623146 ! Pre Order
Hensel Cable gland IP66 M20 light-grey ADG 20 | Elektrika.lv
Hensel Cable gland IP66 M20 light-grey ADG 20 | Elektrika.lv

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)

  • e-store price

    1.71 € / pcs

  • Quantity

  • Total price VAT included (21%)

    1.71 €

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.

  • Riga (Marupe)

    0

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

Product details

* The displayed pictures may not match the product

  • Manufacturer

    Hensel

  • Manufacturers ID

    ADG 20

  • EAN

    4012591135975

Certificate

Product parameters Additional parameters

Product parameters

  • Net Weight

    0.012 kg

  • Colour

    Gray

  • Diameter Ø

    203 mm

  • Dimensions

    29X37X26 mm

  • Halogen free

    Yes

  • Height

    29 mm

  • Ingress Protection

    IP66

  • Length

    26 mm

  • Width

    37 mm

Additional parameters

+

  • Bend radius protection/trumpet flare

    -

  • Colour

    Grey

  • Degree of protection (IP)

    IP66

  • Explosion-tested version

    -

  • Flat cable coupling

    -

  • For Ex-Zone dust

    None

  • For Ex-zone gas

    None

  • Glass-fibre reinforced

    -

  • Halogen free

    +

  • Hexagon angular dimension

    26.5 mm

  • Material

    Plastic

  • Material quality

    Polyamide (PA)

  • Model

    Straight

  • Multi seal area

    -

  • Nominal thread size metric/PG

    20

  • Pitch thread

    1.5 mm

  • RAL-number

    7035

  • Separable screw gland

    -

  • Shock resistant

    +

  • Suitable for cable diameter

    5 .. 13 mm

  • Surface protection

    Untreated

  • Thread length

    8 mm

  • Thread type

    Metric

  • Type of sealing

    Sealing ring

  • With locknut

    +

  • With strain relief

    +

  • Working temperature

    -25 .. 40 °C

  • Wrench width

    24 mm
