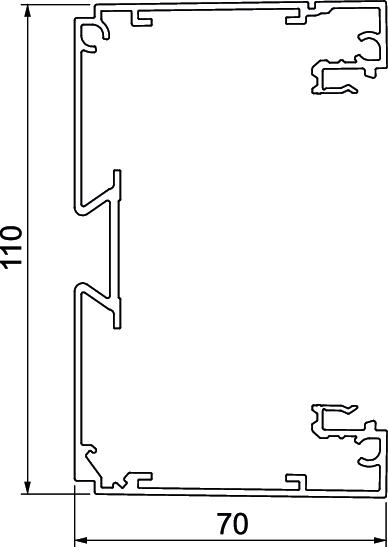

Device mounting cable duct, 70x110x2000mm, aluminum, Signa Style, BRA 70110 EL

Antibacterial treatment

-

Colour

Aluminium

Construction rear wall (inner side)

Continuous DIN-rail

Construction type rectangular

+

Covers supplied with the product

-

Cover width 1

80 mm

Cover width 2

0 mm

Cover width 3

0 mm

Depth

70 mm

Halogen free

+

Height

70 mm

Length

2000 mm

Material

Aluminium

Mounting method covers

Inner lying

Mounting perforation in bottom

+

Number of covers

1

Number of plug-in partitions

1

RAL-number

-

Surface protection

Anodised

Symmetric

+

Useful cross section

6050 mm²

Width

110 mm

With cable fixing clip

-

With duct connector

-

With protection film

+
