Product parameters

Net Weight

0.389 kg
Height

105 mm
Length

120 mm

Sustainability

+
Width

55 mm

Additional parameters

Connection type auxiliary circuit

Spring clamp connection
Depth

84 mm
Height

77 mm
Interface

-
Manual operation

-
Manual operation possible

-
Mounting method

DIN-rail/screw
Number of auxiliary contacts as change-over contact

0
Number of auxiliary contacts as normally closed contact

2
Number of auxiliary contacts as normally closed contact, delayed switching

0
Number of auxiliary contacts as normally open contact

3
Number of auxiliary contacts as normally open contact, leading

0

Operating voltage at AC 50 Hz

690 .. 690 V
Operating voltage at AC 60 Hz

690 .. 690 V
Rated control supply voltage Us at AC 50HZ

110 .. 110 V
Rated control supply voltage Us at AC 60HZ

110 .. 110 V
Rated operation current

10 A
Rated operation current Ie, 400 V

10 A
Rated switch current

0.005 A
Voltage type (operating voltage)

AC
Voltage type for actuating

AC
Width

45 mm
With LED indication

-

Description

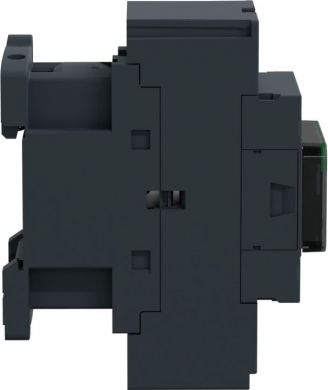

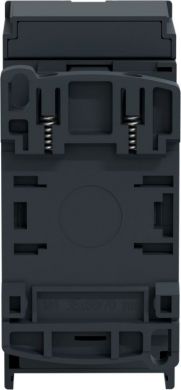

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

TeSys Control Relays provide a cost-effective solution to a simple application
Same design as TeSys D, K and SK contactors
Different ways for connection. (such as screw clamp terminal, spring terminal, welded on PCB)
Compatible for all the voltages on the market
Multiple international certifications
Control relays for AC or DC control circuits (AC15, DC13)
