Duct fan TD-160/100 N SILENT (220-240V50HZ) RE

Product ID: 9638570 In Stock
S&P Duct fan TD-160/100 N SILENT (220-240V50HZ) RE 5211318000 | Elektrika.lv

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)

  • e-store price

    112.78 € / pcs.

  • Quantity

  • Total price VAT included (21%)

    112.78 €

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.

  • Riga (Marupe)

    1

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

  • Vendor stock

    10

Product details

* The displayed pictures may not match the product

  • Manufacturer

    S&P

  • Manufacturers ID

    5211318000

  • EAN

    8413893080240

Technical information

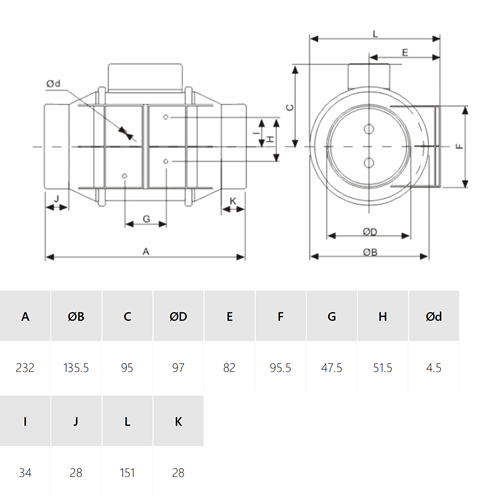

Dimensioned Drawing

Product parameters Additional parameters

Product parameters

  • Net Weight

    1.065 kg

Additional parameters

+

  • 2-speed motor

    -

  • Air volume, unloaded

    179.00 m³/h

  • Air volume at pressure 2

    153.79 m³/h

  • Air volume at pressure 3

    11.44 m³/h

  • Connection

    Insert end

  • Connection voltage

    230.00 V

  • Degree of protection (IP)

    IP44

  • Diameter, housing

    135.50 mm

  • Direct-current motor

    -

  • Duct diameter

    97.00 mm

  • Electrical connection

    Terminals

  • Indirect drive

    -

  • Length

    232.00 mm

  • Max. air temperature

    40.00 °C

  • Pole-reversible

    -

  • Power consumption

    0.03 kW

  • Pressure 2

    25.00 Pa

  • Pressure 3

    100.00 Pa

  • Suitable for electronic control

    +

  • Suitable for frequency control

    -

  • Suitable for low-current control

    -

  • Suitable for transformer control

    +

  • With thermal protection

    +
