Air fan HCBT/4-1000/H-AX (400V50HZ) V5

Product ID: 9633597 In Vendor Inventory
S&P Air fan HCBT/4-1000/H-AX (400V50HZ) V5 5111935200 | Elektrika.lv

Price and quantity

* Price is valid while product is in stock. if a chosen item is out of stock at the moment, our specialists will inform you about delivery terms and prices.
(0)

  • e-store price

    2675.06 € / pcs.

  • Quantity

  • Total price VAT included (21%)

    2675.06 €

Availability

* The availability of a product in Elektrika warehouses is indicated below. If the product is in the supplier's warehouse, it may take up to 2-12 business days to arrive at Elektrika warehouse.

  • Riga (Marupe)

    0

  • Daugavpils

    0

  • Valmiera

    0

  • Ventspils

    0

  • Vendor stock

    10

Product details

* The displayed pictures may not match the product

  • Manufacturer

    S&P

  • Manufacturers ID

    5111935200

  • EAN

    8413893115980

Technical information

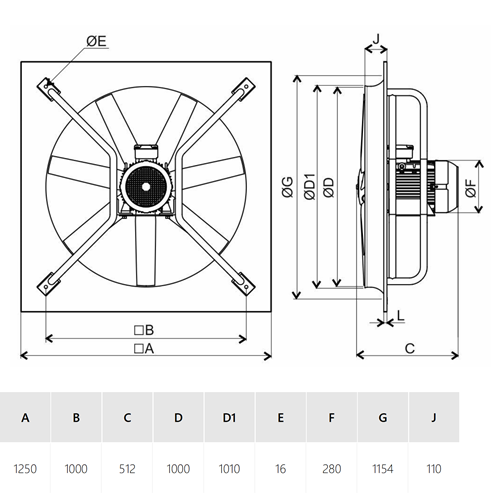

Dimensioned Drawing

Product parameters Additional parameters

Product parameters

  • Net Weight

    124.65 kg

Additional parameters

+

  • Air volume, unloaded

    53666.00 m³/h

  • Air volume at pressure 2

    40822.00 m³/h

  • Air volume at pressure 3

    18042.74 m³/h

  • Colour

    Black

  • Connection voltage

    690.00 V

  • Degree of protection (IP)

    IP55

  • Depth

    512.00 mm

  • Electrical connection

    Terminals

  • Height

    1250.00 mm

  • Hygrostat

    None

  • Impeller diameter

    - mm

  • Louver

    None

  • Material housing

    Steel

  • Max. air temperature

    40.00 °C

  • Operation

    Mains

  • Power consumption

    8.52 W

  • Pressure 2

    275.00 Pa

  • Pressure 3

    600.00 Pa

  • Suitable for electronic control

    -

  • Suitable for frequency control

    +

  • Suitable for transformer control

    -

  • Timer

    None

  • Width

    1250.00 mm

  • With non-return valve

    -

  • With thermal protection

    -
