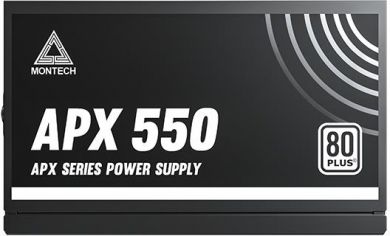

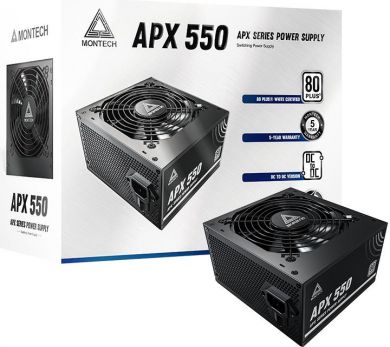

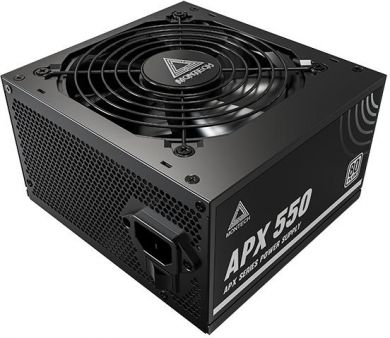

Power Supply MONTECH APX 550W 550 W APX550

80 PLUS certification

80 PLUS White

AC input frequency

50

AC input voltage

100 V

Bearing technology

HDB

CPU power connector (4+4 pin)

+

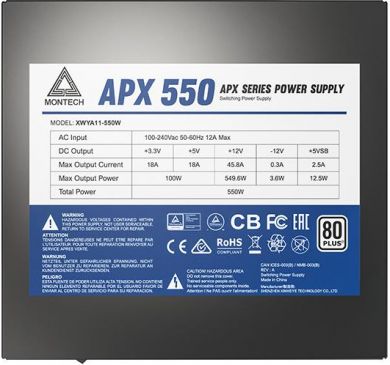

Combined power (+3.3V)

100

Combined power (+5V)

100

Combined power (+5Vsb)

2.5

Combined power (+12V)

549.6

Combined power (-12V)

3.6

Compliance certificates

CB/CE/cTUVus/EAC/Federal Communications Commission (FCC)/RCM/RoHS/UKCA

Depth

140 mm

Fan diameter

120 mm

Height

86 mm

Input current

12

Max output current (+3.3V)

18

Max output current (+5V)

18

Max output current (+12V)

45.8

Max output current (-12V)

0.3

Model name

APX 550W

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

6

Number of fans

1

Operating temperature (T-T)

0

PCI Express power connectors (6+2 pin)

2

Peripheral (Molex) power connectors (4-pin)

3

Power protection features

Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Power supply unit (PSU) form factor

ATX

Product colour

Black

Purpose

PC

Summary

Montech APX550. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS White. Product colour: B

Total power

550

Unit Box Height

0.095

Unit Box Length

0.25

Unit Box Width

0.2

Unit Calculated Volume

0.00475 cubm

Units per Pallet

0

Vendor Homepage

https://www.montechpc.com/apx-550w

Width

150 mm
