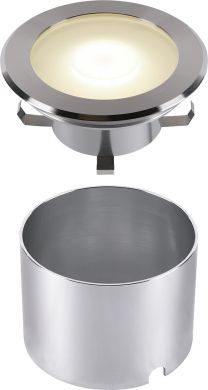

DASAR FLAT 120 EL, stainless steel in-ground light, 7W 3000K

Adjustable

-

Beam angle adjustable

No

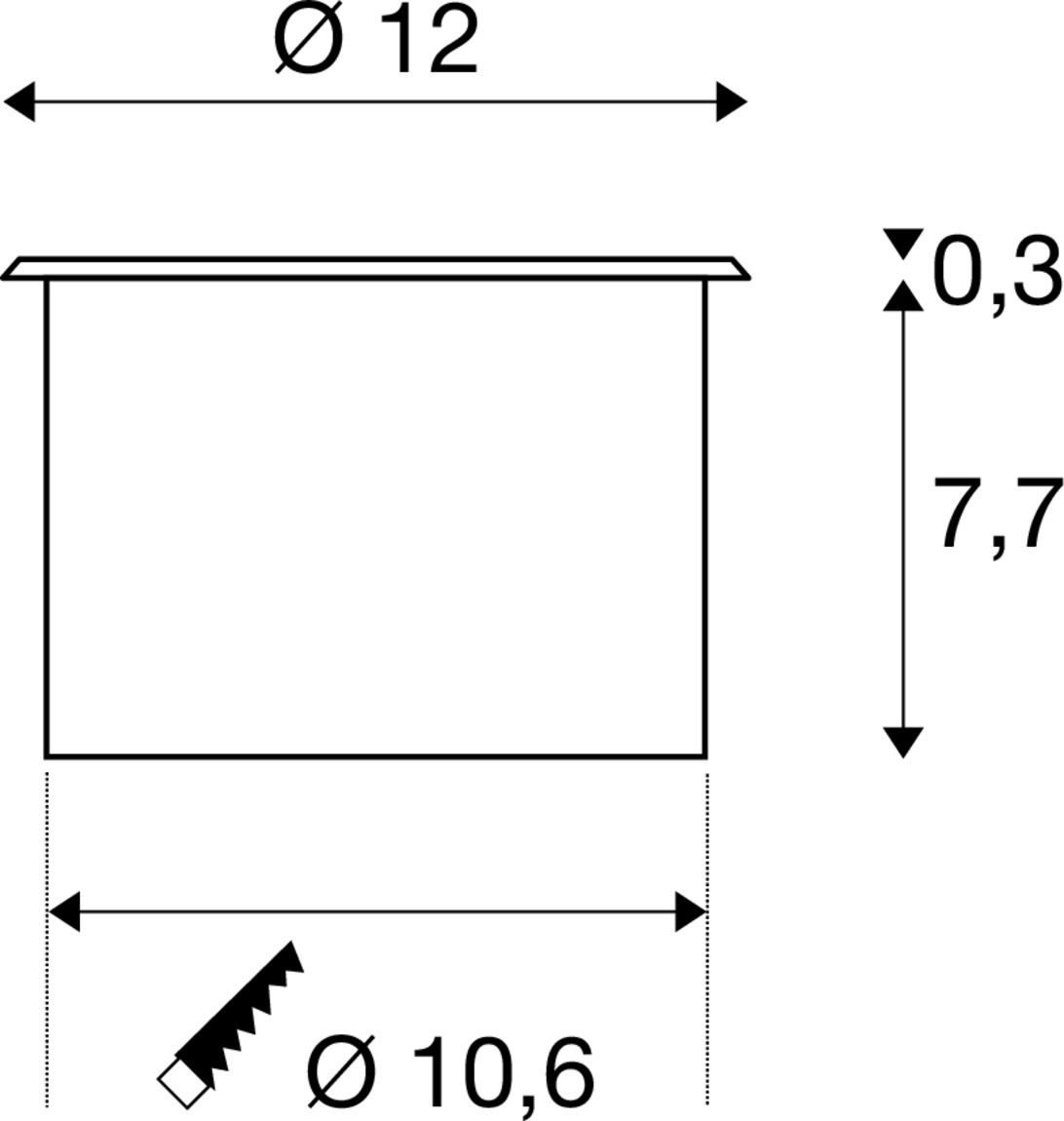

Built-in diameter

106 mm

Built-in height/depth

80 mm

Built-in length

106 mm

Built-in width

106 mm

Colour housing

Stainless steel

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

3000 .. 3000 K

Colour temperature adjustable

No

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Google Assistant

-

Conductor cross section

- mm²

Connection type

Other

Constant luminous flux control

-

Control gear included

+

Degree of protection (IP)

IP65

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Electrical connection with connector system

-

Exchangeable control gear

-

Height/depth

120 mm

IFTTT support available

-

Impact strength

IK08

LED nominal current at constant current

350 .. 350 mA

Lamp holder

Other

Lamp type

LED not exchangeable

Length

80 mm

Light distributor

Other

Light sharing

Symmetric

Luminaire efficacy

70.00 lm/W

Luminous flux adjustable

No

Material cover

Glass transparent

Material housing

Steel

Max. load

500 kg

Max. surface temperature

65 °C

Max. system power

7 W

No dim function

+

Nominal current

350 .. 350 mA

Nominal voltage

220 .. 240 V

Number of poles

-

Outer diameter

120 mm

Over rollable

-

Plotis

120 mm

Power factor

-

Protection class

I

Quality class of housing material

Stainless steel 304 (V2A)

Rated life time L70/B50 at 25 °C

30000 h

Rated luminous flux acc. IEC 62722-2-1

520 lm

Suitable for lamp power

7 .. 7 W

Suitable for number of lamps

1

Type of control gear

LED operating device current-controlled

Type of wiring

Ending

Voltage type

AC

With light source

+
