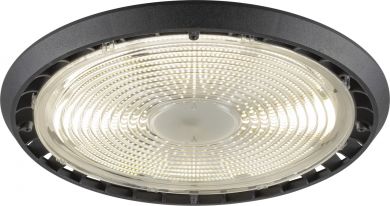

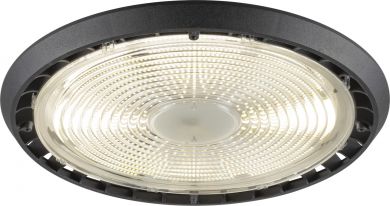

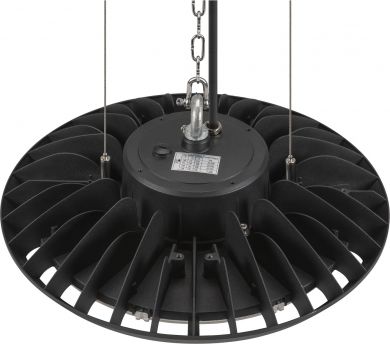

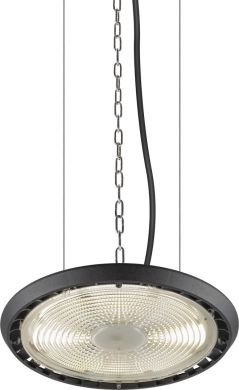

HIGHBAY V 330, 100/120/170/200W 840 90°

Beam angle adjustable

No

Colour housing

Black

Colour of light

White

Colour rendering index CRI

80-89

Colour temperature

4000 .. 4000 K

Colour temperature adjustable

No

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Google Assistant

-

Conductor cross section

- mm²

Constant luminous flux control

-

Control gear included

+

Degree of protection (IP)

IP65

Diameter

330 mm

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DALI-2

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Direct-/indirect proportion separately controllable

-

Emergency power supply integrated

-

Exchangeable control gear

+

Fit for monitor workplace acc. EN 12464-1

-

Height/depth

119 mm

IFTTT support available

-

Impact strength

IK08

LED nominal current at constant current

830 .. 830 mA

Lamp holder

Other

Lamp type

LED not exchangeable

Length

330 mm

Light distributor

Other

Light outlet

Direct

Light sharing

Symmetric

Luminaire efficacy

160 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux adjustable

No

Material cover

Other

Material housing

Aluminium

Max. system power

200 W

No dim function

+

Nominal current

830 .. 830 mA

Nominal voltage

220 .. 240 V

Number of poles

-

Plotis

330 mm

Power factor

-

Protection class

I

Rated life time L70/B50 at 25 °C

- h

Rated life time L80/B10 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

32000 lm

Reflector

Other

Suitable for emergency lighting

-

Suitable for lamp power

200 .. 200 W

Suitable for light line configuration

-

Suitable for number of lamps

1

Suspension supplied with the product

-

Type of control gear

LED operating device current-controlled

Type of wiring

Ending

Voltage type

AC

With light source

+
