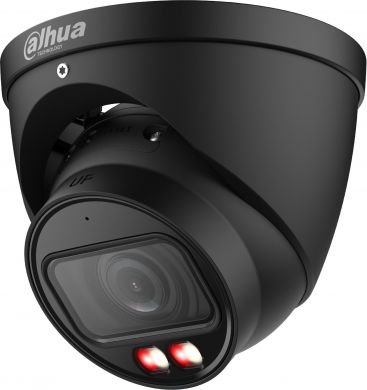

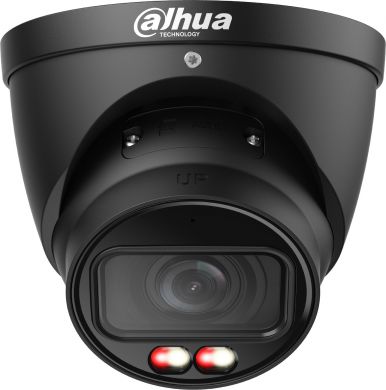

NET CAMERA 4MP EYEBALL/HDW5459T-ZE-IL-2712-B DAHUA

Angle of rotation

360

Audio formats supported

G.711 µ-law/G.711 A-law/G.723/G.726/PCM

Back Light Compensation (BLC)

+

Bit rate control

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Bluetooth

1

Built-in HDD

1

Built-in microphone

0

Camera pan control

+

Camera shutter speed

1

Camera tilt control

+

Card reader integrated

0

Closest focusing distance

0.13 m

Compatible memory cards

MicroSD (TransFlash)

Compliance certificates

CE

Connectivity technology

Wired

DC-in jack

+

DC output voltage

12

Day/night mode

0

Detect distance (tele)

130.8 m

Detect distance (wide)

57.5 m

Diameter

122 mm

Digital watermark

+

Dynamic range

140 dB

Ethernet LAN

0

Ethernet LAN (RJ-45) ports

1

Ethernet interface type

Fast Ethernet

Focal length range

2.7 mm

Form factor

Turret

Frame rate

30

Gain control type

Auto/Manual

HTTPS encryption

+

Height

108.3 mm

Highlight Compensation (HLC)

+

Housing material

Metal

Human and vehicle targets classification

0

Identify distance (tele)

13.1 m

Identify distance (wide)

5.8 m

Image stabilizer

+

Intelligent Video Surveillance (IVS) system features

Intrusion/People counting/Tripwire

International Protection (IP) code

IP67

LED type

IR

Lens viewing angle, diagonal

137

Lens viewing angle, horizontal

115

Lens viewing angle, vertical

62

Manual

0

Maximum aperture number

1.8

Maximum memory card size

1000 GB

Maximum resolution

2688

Minimum illumination

0.0004

Mirror

+

Mobile operating systems supported

Android/iOS

Mounting type

Ceiling/Wall/Pole

Network access storage (NAS)

+

Networking standards

IEEE 802.1x/IEEE 802.3at

Night vision

0

Night vision distance

50 m

Noise reduction

+

Noise reduction technology

3D noise reduction

Number of cameras

1

Number of illumination LEDs

2

Number of users

20

Observe distance (tele)

52.3 m

Observe distance (wide)

23 m

Operating temperature (T-T)

-40

Optical sensor size

1

Package weight

960 g

Pan range

0

People counting function

+

Placement supported

Outdoor

Power consumption (max)

14.8

Power consumption (typical)

3.5

Power source type

DC,PoE

Product colour

Black

Progressive scan

+

Quality of Service (QoS) support

+

RAM capacity

2048 MB

ROM capacity

4096 MB

Recognize distance (tele)

26.2 m

Recognize distance (wide)

11.5 m

Region of Interest (ROI) encoding

+

Sensor type

CMOS

Signal-to-Noise Ratio (SNR)

56 dB

Smart IR

+

Storage temperature (T-T)

-40

Streaming method

Multicast

Summary

Dahua Technology WizMind IPC-HDW5459T-ZE-IL-2712-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Turret. Minimum illumination: 0.0004

Supported network protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Tilt angle range

0

Total megapixels

4

Type

IP security camera

Unit Box Height

0.14

Unit Box Length

0.16

Unit Box Width

0.155

Unit Calculated Volume

0.003472 cubm

Units per Pallet

0

Vendor Homepage

https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/4MP/IPC-HDW5459T-ZE-IL

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Video motion detection

0

Video recording

0

Video streaming

+

Weight

700 g

White balance

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Wi-Fi

1

Wide Dynamic Range (WDR)

0
