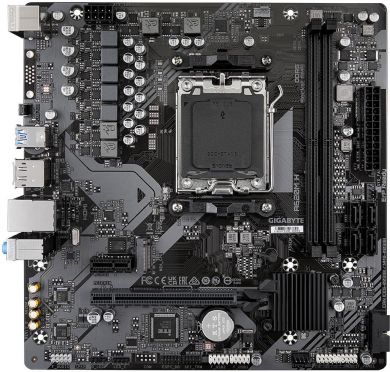

Mainboard GIGABYTE AMD A620A SAM5 Micro-ATX Memory DDR5 Memory slots 2 A620MH2.2

12V power connector

+

ACPI version

5.0

ATX Power connector (24-pin)

+

Audio output channels

7.1

BIOS memory size

256

BIOS type

UEFI AMI

Batteries included

+

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

Bundled software

Norton Internet Security LAN bandwidth management software

CPU fan connector

+

Cables included

SATA

Clear CMOS jumper

+

CnCode

84733020

Compatible processor series

AMD Ryzen 7000 Series

Component for

PC

Country of origin

China

Depth

225 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPorts quantity

1

DisplayPort version

1.4

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

+

Ethernet LAN

+

Ethernet LAN (RJ-45) ports

1

Ethernet interface type

Gigabit Ethernet

Front panel audio connector

+

Front panel connector

+

HDCP

+

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

3

Height

35 mm

Lithium weight per battery

0.07 g

Maximum internal memory

96 GB

Maximum internal memory supported by processor

96 GB

Maximum resolution

4096

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

+

Motherboard chipset

AMD A620

Motherboard chipset family

AMD

Motherboard form factor

micro ATX

Number of HDDs supported

4

Number of M.2 (M) slots

1

Number of SATA III connectors

4

Number of battery cells

1

Number of memory slots

2

Number of storage drives supported

5

PCI Express x1 slots

1

PCI Express x16 slots

1

PC health monitoring

Fan/Temperature/Voltage/Water cooling

PS/2 ports quantity

1

Package depth

265 mm

Package height

54 mm

Package weight

897 g

Package width

265 mm

Parallel processing technology support

Not supported

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

Brown

Products per shipping (inner) case

1

RAID levels

0/1/10

RAID support

+

RGB LED pin header

+

Summary

GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen

Supported memory clock speed (max)

7200 MHz

Supported memory clock speeds

4400 MHz

Supported memory module capacities

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2,SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

+

Total number of SATA connectors

4

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB connector type

USB Type-A/USB Type-C

Unbuffered memory

+

Unit Calculated Volume

0.00379 cubm

Vendor Homepage

https://www.gigabyte.com

Warranty period

3

Wi-Fi

-

Width

230 mm

Windows operating systems supported

Windows 10 x64/Windows 11 x64
