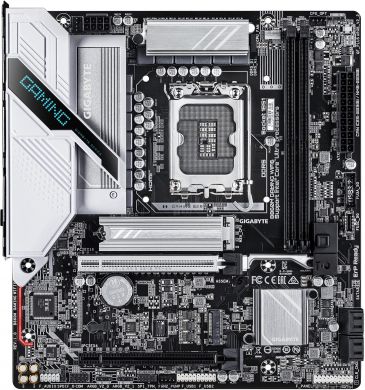

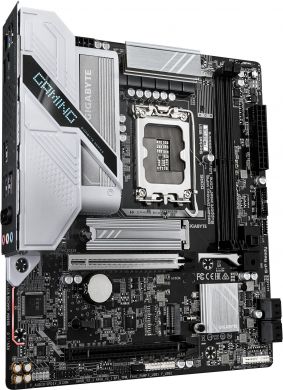

Mainboard GIGABYTE Intel B860 Express LGA1851 Micro-ATX Memory DDR5 Memory slots 2 B860MGAMINGWIFI6

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

ACPI version

5.0

ATX Power connector (24-pin)

+

Antenna included

+

Audio chip

Realtek ALC897

Audio output channels

7.1

BIOS memory size

256

BIOS type

UEFI AMI

Batteries included

+

Battery capacity

220 mAh

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

Bluetooth

+

Bluetooth version

5.3

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

CPU fan connector

+

Clear CMOS jumper

+

CnCode

84733020

Compatible processor series

Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)

Component for

PC

Cooling type

Passive

Depth

225 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPorts quantity

1

DisplayPort version

2.1

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

+

Ethernet LAN

+

Ethernet LAN (RJ-45) ports

1

Ethernet interface type

2.5 Gigabit Ethernet

Front panel audio connector

+

Front panel connector

+

HDCP

+

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8125

Line-in

+

Lithium weight per battery

0.07 g

Maximum internal memory

128 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

+

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

4

Number of M.2 (M) slots

2

Number of RGB LED pin headers

4

Number of SATA III connectors

4

Number of battery cells

1

Number of chassis fan connectors

2

Number of memory slots

2

Number of storage drives supported

6

Number of water pump connectors

2

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PC health monitoring

Fan/Temperature/Voltage/Water cooling

Package depth

268 mm

Package height

68 mm

Package weight

1293 g

Package width

270 mm

Parallel processing technology support

Not supported

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Product colour

Brown

Products per shipping (inner) case

1

RAID levels

0/1/10/5

RAID support

+

RGB LED pin header

+

Screws included

+

Summary

GIGABYTE B860M GAMING WIFI6 Motherboard - Intel Core Ultra Series CPUs, 8+1+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible pr

Supported memory clock speed (max)

9066 MHz

Supported memory clock speeds

5600 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1851

Supported storage drive interfaces

M.2,SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

+

Thunderbolt headers

2

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

USB 2.0 connectors

2

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Unbuffered memory

+

Unit Box Height

0.265

Unit Box Length

0.27

Unit Box Width

0.07

Unit Calculated Volume

0.005008 cubm

Units per Pallet

0

Vendor Homepage

https://www.gigabyte.com/

WLAN controller model

Intel Wi-Fi 6E AX211

Weight

1225 g

Wi-Fi

+

Wi-Fi standards

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

WiFi-AP antenna jack

2

Width

244 mm

Windows operating systems supported

Windows 10 x64/Windows 11 x64
