Złączka przelotowa WLZ35/5x50/sssnz

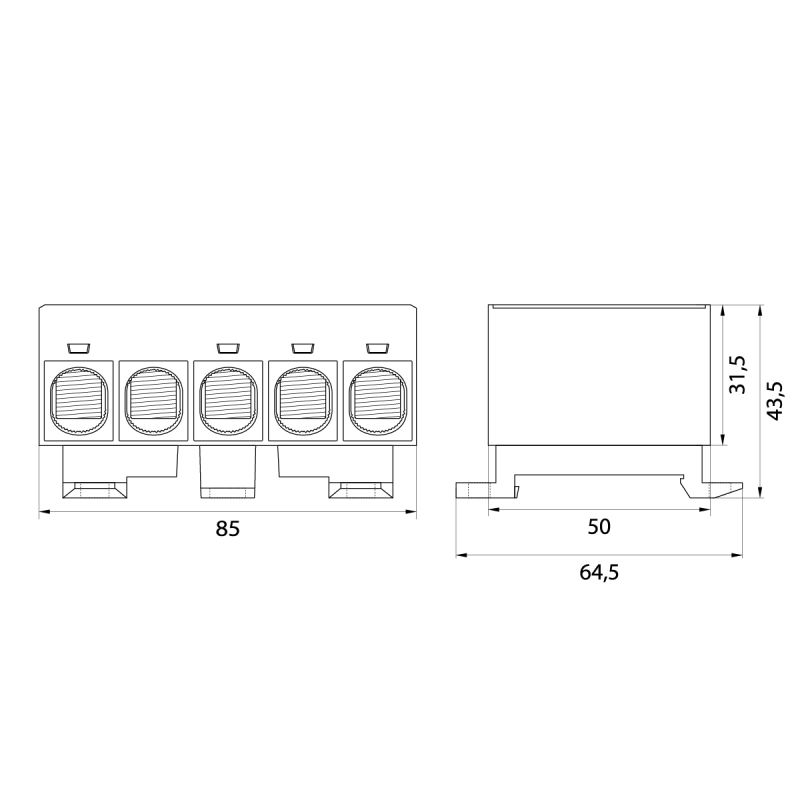

Aukščio

85 mm

Closing plate required

-

Connectable conductor cross section fine-strand with cable end sleeve

2.5 .. 50 mm²

Connectable conductor cross section fine-strand without cable end sleeve

2.5 .. 50 mm²

Connectable conductor cross section multi-wired

2.5 .. 50 mm²

Connectable conductor cross section solid-core

2.5 .. 50 mm²

Depth

43.5 mm

Explosion-tested version 'Ex e'

-

Internally connected stages

-

Mounting method

DIN rail (top hat rail) 35 mm

Number of clamp positions per level

2

Number of levels

5

Plotis

64.5 mm

Rated current In

145 A

Rated voltage

690 V

Spalva

Multi-coloured

Suitable for conductor material

Aluminium/copper

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection
