Luminaire PANEL C 1200, 34W, 930/940, 3000/4000K, 4200/4400lm, white

Adjustability

Not adjustable

Beam angle

Extreme wide beam >80°

Beam angle adjustable

No

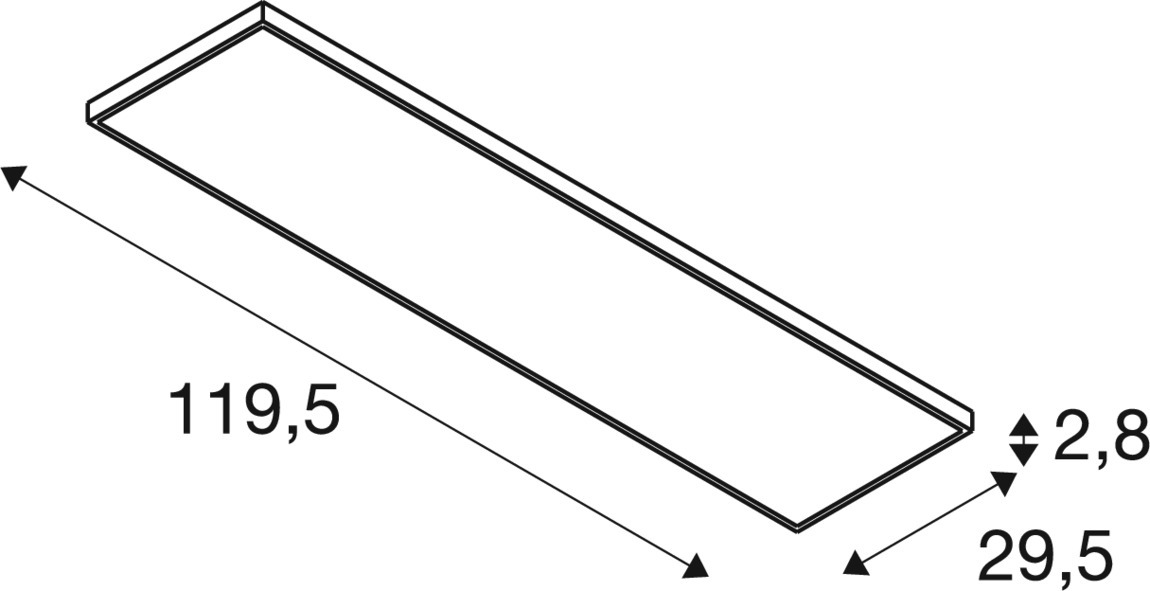

Built-in height/depth

80 mm

Built-in length

1170 mm

Built-in width

1170 mm

Colour housing

White

Colour of light

White

Colour rendering index CRI

90-100

Colour temperature

3000 .. 4000 K

Colour temperature adjustable

Positions

Compatible with Amazon Alexa

-

Compatible with Apple HomeKit

-

Compatible with Google Assistant

-

Conductor cross section

- mm²

Connectable conductor cross section

2.5 .. 2.5 mm²

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DALI-2

-

Dimming DMX

-

Dimming DSI

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy efficiency class of the light source according to EU regulation 2019/2015

D

Exchangeable control gear

+

Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

- %

Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)

- %

Fit for monitor workplace acc. EN 12464-1

+

Flickering value Pst LM

-

Height/depth

28 mm

IFTTT support available

-

Impact strength

IK02

Lamp holder

Other

Lamp type

LED not exchangeable

Length

1195 mm

Light distributor

Diffuser lens/optic/panel

Light outlet

Direct

Light sharing

Symmetric

Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)

- %

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

- %

Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)

- %

Luminaire efficacy

123.53 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux

4200 .. 4200 lm

Luminous flux adjustable

No

Luminous intensity

- cd

Material cover

Other

Material housing

Aluminium

Max. number of luminaires per miniature circuit breaker B16 (MCB)

27

Max. number of luminaires per miniature circuit breaker C16 (MCB)

45

Max. system power

34 W

No dim function

+

Nominal voltage

220 .. 240 V

Number of poles

-

Operation by Bluetooth

-

Outer diameter

- mm

Plotis

295 mm

Power factor

-

Protection class

II

Rated ambient temperature acc. IEC62722-2-1

-20 .. 45 °C

Rated life time L70/B50 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

4200 lm

Reflector

None

Reflector colour

Other

Spalvinė temperatūra

3000/4000 K

Stroboscope effect value SVM

-

Suitable for built-in mounting

+

Suitable for ceiling mounting

+

Suitable for clamp-mounting

-

Suitable for lamp power

34 .. 34 W

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for number of lamps

1

Suitable for pedestal/floor mounting

-

Suitable for surface mounting

-

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Surface brushed

-

Surface protection

Lacquered

Total harmonic distortion

-

Type of control gear

LED operating device current-controlled

Type of wiring

Suitable for through wiring

Unified Glare Ratio (UGR)

19

Voltage type

AC

Wall mounting

-

With light sensor

-

With light source

+

With movement sensor

-
