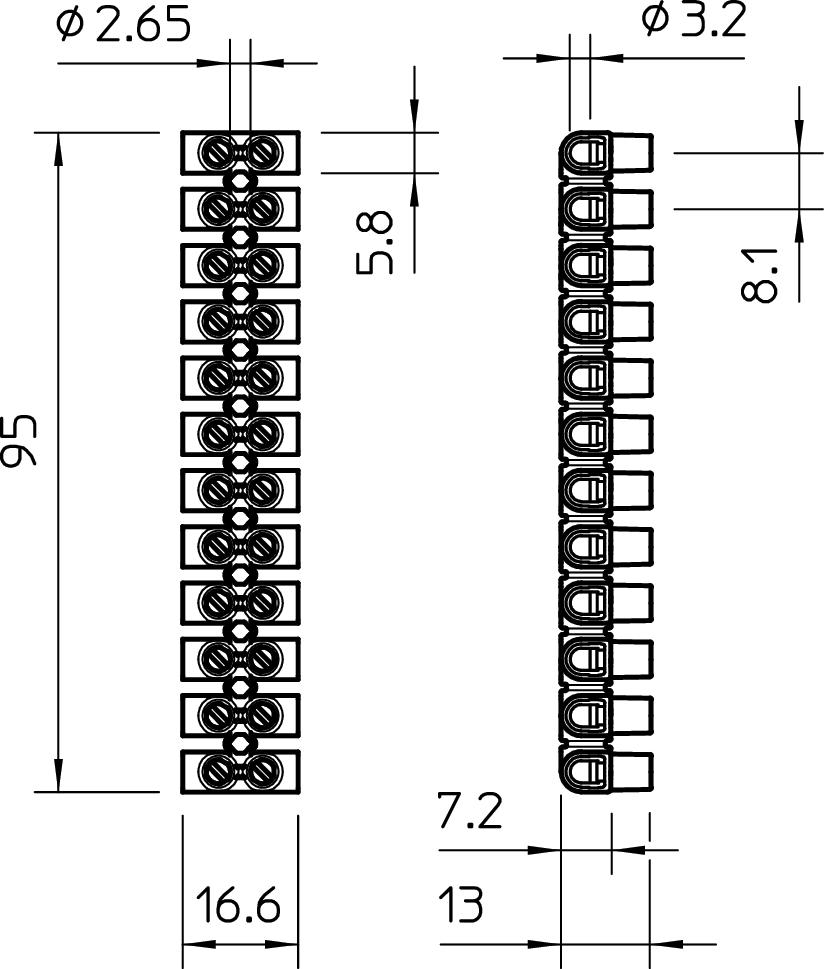

72/CE LTF OBO 4 mm² series connectors, polypropylene

Closing plate required

-

Connectable conductor cross section fine-strand without cable end sleeve

1 .. 4 mm²

Connectable conductor cross section multi-wired

1 .. 4 mm²

Connectable conductor cross section solid-core

1 .. 4 mm²

Connection position

Sideways

Drill hole distance centrically

8.1 mm

Explosion-tested version 'Ex e'

-

Halogeenivaba

-

Height at lowest possible mounting height

13 mm

Length

95 mm

Mounting method

Direct mounting

Number of clamp positions per pole

2

Number of poles

12

Operation temperature

-5 .. 80 °C

Rated current In

32 A

Rated voltage

450 V

Transparent

-

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Värv

White

Width/grid dimension

16.6 mm
