V-PV-T1+2-1000 Скомплектованный фотоэлектрический блок 1000 V DC

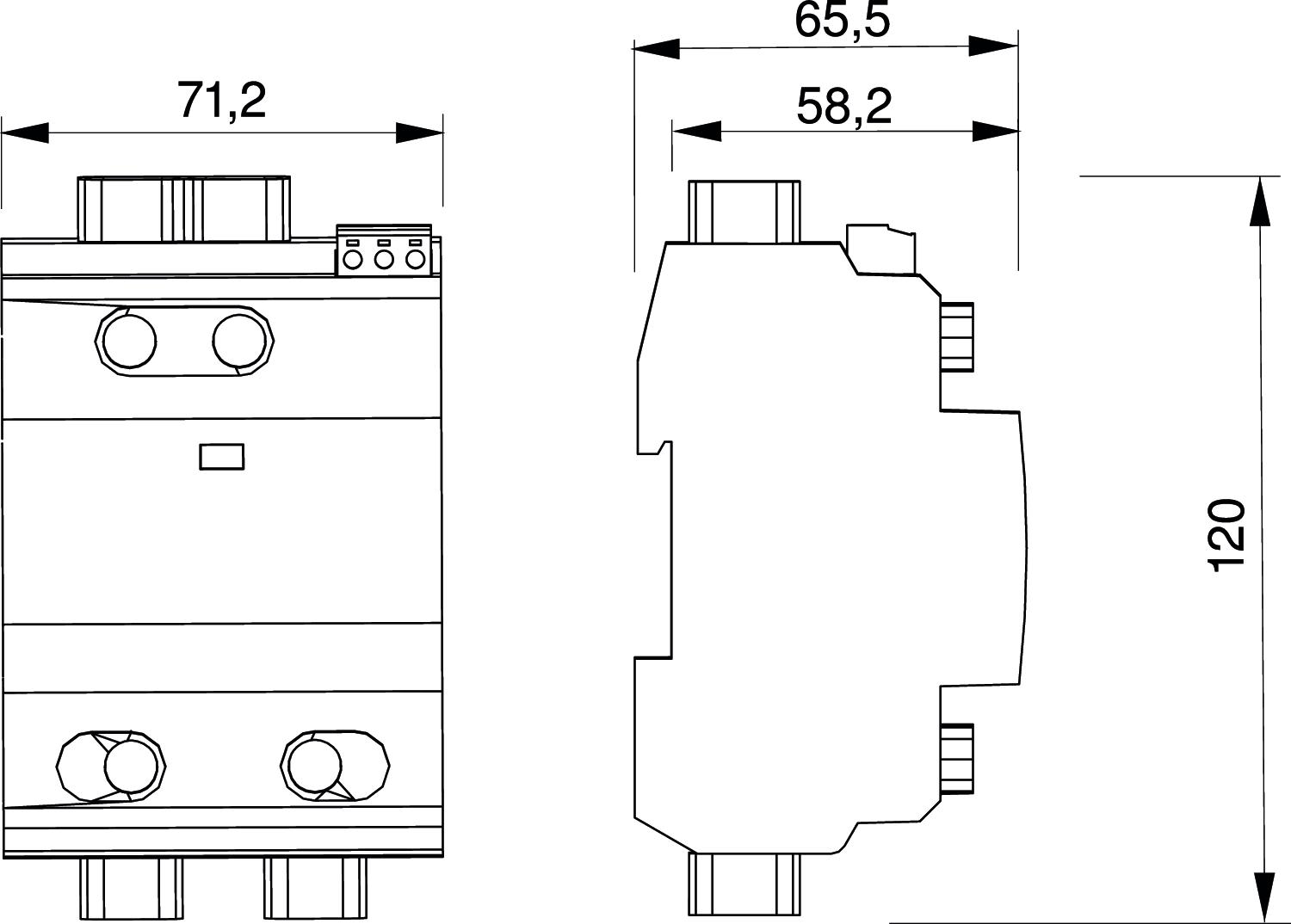

Construction size

4 modular spacing

Degree of protection (IP)

IP20

Energy-coordinated protection effect with regard to the terminal equipment

-

Exhausting

-

Integrated backup fuse

-

Lightning impulse current (10/350 µs)

6.25 kA

Max. PV-voltage

1000 V

Max. conductor cross section flexible (fine-strand)

35 mm²

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. continuous voltage DC

1000 V

Mounting method

DIN rail (top hat rail) 35 mm

Number of poles

-

Remote signalling

-

Signalling at the device

Optical

System configuration DC

+

System configuration IT

-

System configuration TN

-

System configuration TN-C

-

System configuration TN-C-S

-

System configuration TN-S

-

System configuration TT

-

System configuration other

-

Test class

Type 1 + 2

Voltage protection level

3.3 kV
