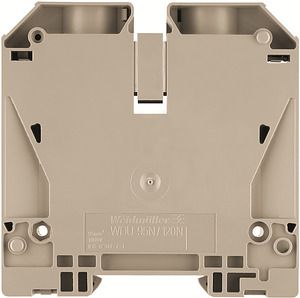

WDU 95N/120N IR

Closing plate required

-

Connectable conductor cross section fine-strand with cable end sleeve

16 .. 95 mm²

Connectable conductor cross section fine-strand without cable end sleeve

16 .. 120 mm²

Connectable conductor cross section multi-wired

16 .. 150 mm²

Connectable conductor cross section solid-core

16 .. 16 mm²

Depth

90 mm

Inflammability class of insulation material acc. with UL94

V0

Internally connected stages

-

Material insulation body

Thermoplastic

Mounting method

DIN rail (top hat rail) 35 mm

Number of clamp positions per level

2

Number of levels

1

Operation temperature

-50 .. 130 °C

Rated current In

269 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Высота

91 mm

Цвет

Бежевый

Ширина

27 mm
