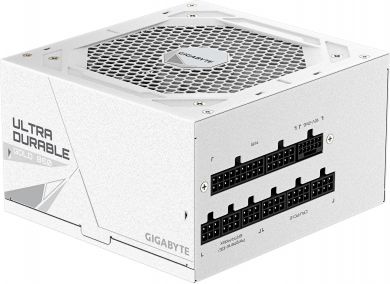

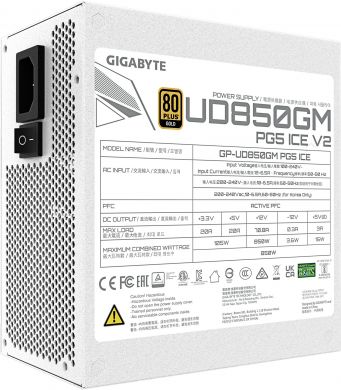

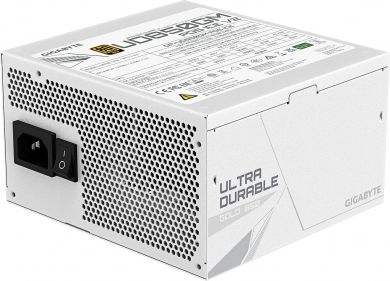

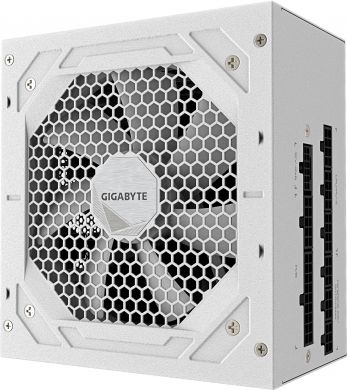

Power Supply GIGABYTE UD850GM PG5 ICE? ATX PC 100 - 240 V 850 W GP-UD850GMPG5ICE

Масса нетто

2.4 кг

80 PLUS certification

80 PLUS Gold

AC input frequency

50

AC input voltage

100 V

ATX version

3.1

Bearing technology

HYB

CPU power cable length

650 mm

CPU power connector (4+4 pin)

+

Cabling type

Fully-Modular

Combined power (+3.3V)

105

Combined power (+5V)

105

Combined power (+5Vsb)

15

Combined power (+12V)

850

Combined power (-12V)

3.6

Cooling type

Active

Depth

140 mm

Efficiency

90

Fan diameter

120 mm

Floppy drive power connector

1

Height

86 mm

Hold time

16 ms

Input current

12

Max output current (+3.3V)

20

Max output current (+5V)

20

Max output current (+5Vsb)

3

Max output current (+12V)

70.8

Max output current (-12V)

0.3

Mean time between failures (MTBF)

100000

Model name

UD850GM PG5 ICE​

Motherboard power cable length

610 mm

Motherboard power connector

20+4 pin ATX

Number of EPS connectors

2

Number of SATA power connectors

8

Number of fans

1

On/off switch

+

PCI Express connector

+

PCI Express power cable length

600 mm

PCI Express power connectors (6+2 pin)

4

PCI Express power connectors (12+4 pin)

1

PCI Express power connectors (12+4 pin) cable length

700 mm

Package depth

269 mm

Package height

211 mm

Package type

Box

Package weight

2560 g

Package width

618 mm

Peripheral (Molex) power connectors (4-pin)

3

Power Factor Correction (PFC) type

Active

Power factor

0.9

Power protection features

Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

Power supply unit (PSU) form factor

ATX

Product colour

White

Purpose

PC

Summary

GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+

Total power

850

Unit Box Height

0.037

Unit Box Length

0.173

Unit Box Width

0.131

Unit Calculated Volume

0.007865 cubm

Units per Pallet

0

Vendor Homepage

https://www.gigabyte.com/Power-Supply/GP-UD850GM-PG5-ICE#kf

Warranty period

10

Weight

2400 g

Width

150 mm
