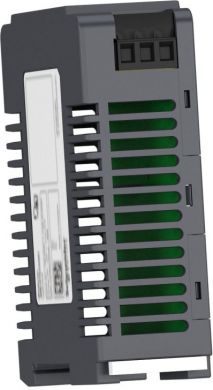

PLC system power supply

1st secondary output voltage

100 .. 240 V

Built-in height

75 mm

Built-in width

30 mm

Degree of protection (IP)

IP20

Depth

89.5 mm

Direct mounting possible

-

Max. output current 1

2.1 A

Modular version

-

Nominal value output current 1

2.1 A

Nominal value output voltage 1

24 V

Output voltage stabilized

-

Performance level acc. EN ISO 13849-1

None

Power output

50 W

Rail mounting possible

+

Rated supply voltage at AC 50 Hz

100 .. 240 V

Rated supply voltage at AC 60 Hz

100 .. 240 V

SIL according to IEC 61508

None

Secondary voltage adjustable

-

Short-circuit-proof

-

Stabilized

+

Suitable for safety functions

+

Type of electric connection

Screw connection

Voltage type of supply voltage

AC

Wall mounting possible

-

Width in number of modular spacings

-

Высота

75 mm

Ширина

30 mm
