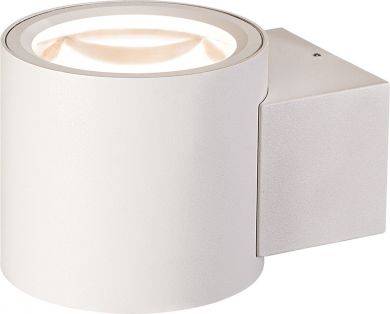

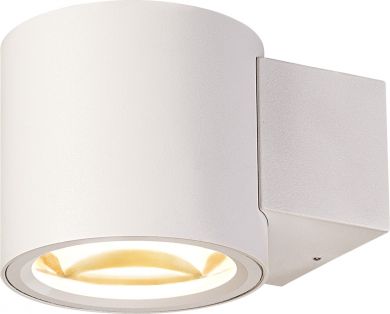

OCULUS WL PHASE, Wall-mounted light white 8.5W 570lm 2000-3000K CRI90 100° Dimmable

Beam angle

Extreme wide beam >80°

Beam angle adjustable

No

Built-in diameter

- mm

Built-in height/depth

- mm

Built-in length

- mm

Built-in width

- mm

Colour housing

White

Colour of light

White

Colour rendering index CRI

90-100

Colour temperature

2000 .. 2000 K

Colour temperature adjustable

Continuously variable

Conductor cross section

- mm²

Constant luminous flux control

-

Control gear included

+

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

-

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

+

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy Efficiency Index (EEI)

-

Fit for monitor workplace acc. EN 12464-1

-

Height/depth

87.5 mm

Housing surface protection

Lacquered

IFTTT support available

-

Laius

90 mm

Lamp holder

Other

Lamp type

LED not exchangeable

Length

124 mm

Light distributor

Other

Light sharing

Symmetric

Luminaire efficacy

67.06 lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux adjustable

Continuously variable

Luminous intensity

- cd

Material cover

Other

Material housing

Aluminium

Max. system power

8.5 W

No dim function

-

Nominal current

350 .. 350 mA

Nominal voltage

220 .. 240 V

Number of poles

-

Outer diameter

90 mm

Power factor

-

Protection class

I

Rated ambient temperature acc. IEC62722-2-1

-20 .. 45 °C

Rated life time L70/B50 at 25 °C

25000 h

Rated life time L80/B10 at 25 °C

- h

Rated life time L90/B10 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

570 lm

Suitable for built-in mounting

-

Suitable for ceiling mounting

-

Suitable for emergency lighting

-

Suitable for lamp power

8.5 .. 8.5 W

Suitable for light line configuration

-

Suitable for number of lamps

1

Suitable for surface mounting

+

Suitable for suspended mounting

-

Suitable for wall mounting

+

Total harmonic distortion

-

Type of control gear

LED operating device current-controlled

Type of wiring

Ending

Voltage type

AC

Wall mounting

+

With air slots

-

With light sensor

-

With light source

+

With movement sensor

-
