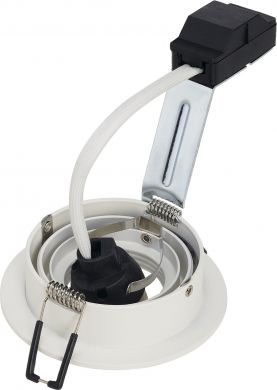

PIREQ GU10 ROUND DOWNLIGHT, white, max. 50W, incl. clip springs

Adjustability

Rotating and swivelling

Beam angle adjustable

No

Built-in diameter

78 mm

Built-in height/depth

110 mm

Built-in length

78 mm

Built-in width

78 mm

Colour housing

White

Colour temperature adjustable

No

Conductor cross section

- mm²

Connectable conductor cross section

2.5 .. 2.5 mm²

Connection type

Other

Constant luminous flux control

-

Control gear included

-

Covering of the luminaire with thermally insulating material possible

-

Degree of protection (IP)

IP20

Dimming 0-10 V

-

Dimming 1-10 V

-

Dimming DALI

-

Dimming DMX

-

Dimming DSI

-

Dimming GPRS

-

Dimming LineSwitch

-

Dimming RF

-

Dimming Sine Wave Reduction

-

Dimming Touch and Dim

-

Dimming Zigbee

-

Dimming depending on control gear

-

Dimming mains voltage modulation

+

Dimming manufacturer's proprietary system

-

Dimming phase cut-off

-

Dimming phase cut-on

-

Dimming potentiometer (integrated)

-

Dimming programmable

-

Dimming with push-button

-

Emergency power supply integrated

-

Energy efficiency class

A++

Fit for monitor workplace acc. EN 12464-1

-

Height/depth

110 mm

Highest energy efficiency class of the exchangeable lamp

A++

IFTTT support available

-

Laius

93 mm

Lamp holder

GU10

Lamp type

LED exchangeable

Length

110 mm

Light distributor

Other

Light outlet

Direct

Lowest energy efficiency class of the exchangeable lamp

E

Luminaire efficacy

- lm/W

Luminaire with limited surface temperature, sign "D“

-

Luminous flux adjustable

No

Luminous intensity

- cd

Material cover

None

Material housing

Aluminium

Max. system power

50 W

No dim function

-

Nominal voltage

230 .. 230 V

Number of poles

-

Outer diameter

93 mm

Power factor

-

Protection class

II

Rated life time L70/B50 at 25 °C

- h

Rated life time L80/B10 at 25 °C

- h

Rated luminous flux acc. IEC 62722-2-1

- lm

Reflector

Other

Suitable for built-in mounting

+

Suitable for ceiling mounting

+

Suitable for clamp-mounting

-

Suitable for lamp power

50 .. 50 W

Suitable for light-track mounting

-

Suitable for low voltage cable system

-

Suitable for number of lamps

1

Suitable for pedestal/floor mounting

-

Suitable for surface mounting

-

Suitable for suspended mounting

-

Suitable for traverse mounting

-

Suitable for wall mounting

-

Surface brushed

-

Surface protection

Lacquered

Total harmonic distortion

-

Type of control gear

Not required

Type of wiring

Ending

Voltage type

AC

Wall mounting

-

With light sensor

-

With light source

-

With movement sensor

-
