IRT-400A ECOWATT 400V50/60HZ N8

2-speed motor

-

Air volume, unloaded

6789.00 m³/h

Air volume at pressure 2

5147.07 m³/h

Air volume at pressure 3

2159.69 m³/h

Connection

Flange

Connection voltage

400.00 V

Degree of protection (IP)

IP54

Diameter, housing

- mm

Direct-current motor

+

Duct diameter, exhaust

- mm

Duct diameter, suction

- mm

Duct height, exhaust

- mm

Duct height, suction

- mm

Duct width, exhaust

- mm

Duct width, suction

- mm

Electrical connection

Terminals

Indirect drive

-

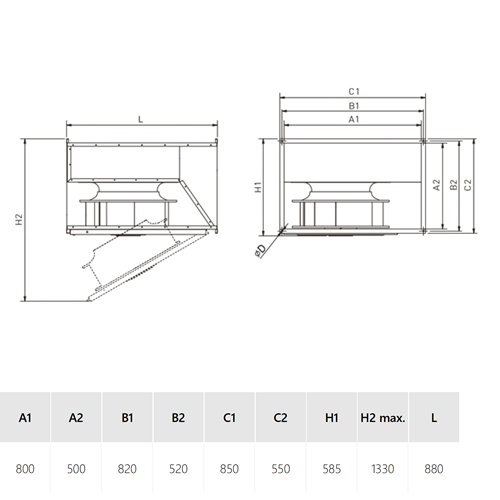

Kõrgus

585.00 mm

Laius

850.00 mm

Length

880.00 mm

Material housing

Steel

Max. air temperature

40.00 °C

Power consumption

1.00 kW

Pressure 2

275.00 Pa

Pressure 3

600.00 Pa

Suitable for electronic control

+

Suitable for frequency control

-

Suitable for low-current control

+

Suitable for transformer control

-

With thermal protection

+
