2-speed motor

-

Air volume, unloaded

347.00 m³/h

Air volume at pressure 2

306.57 m³/h

Air volume at pressure 3

33.00 m³/h

Connection

Insert end

Connection voltage

230.00 V

Degree of protection (IP)

IP44

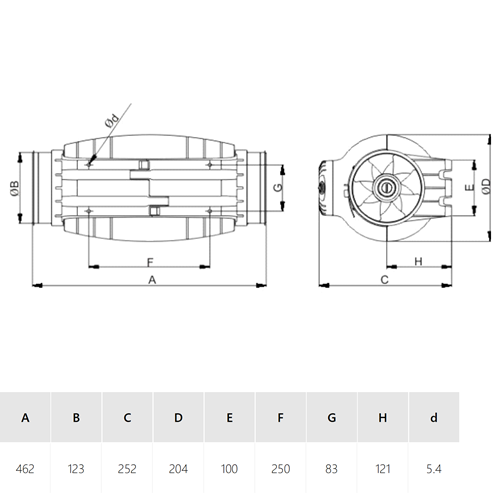

Diameter, housing

204.00 mm

Direct-current motor

-

Duct diameter

123.00 mm

Electrical connection

Terminals

Indirect drive

-

Length

462.00 mm

Max. air temperature

40.00 °C

Pole-reversible

-

Power consumption

0.02 kW

Pressure 2

25.00 Pa

Pressure 3

100.00 Pa

Suitable for electronic control

+

Suitable for frequency control

-

Suitable for low-current control

+

Suitable for transformer control

-

With thermal protection

+
