• Iemontēta potenciālu izlīdzināšanas kopne 1804 zemapmetuma korpusā • Zemapmetuma korpuss ar gatavu presējumu vajadzīgo vadu un vāka ievietošanai Pievienošanas iespējas: • 6 vadi, 1,5–10 mm² • 1 vads, 6–16 mm²

Construction type

Surface mounting fix

Explosion-tested version

-

Insulator

+

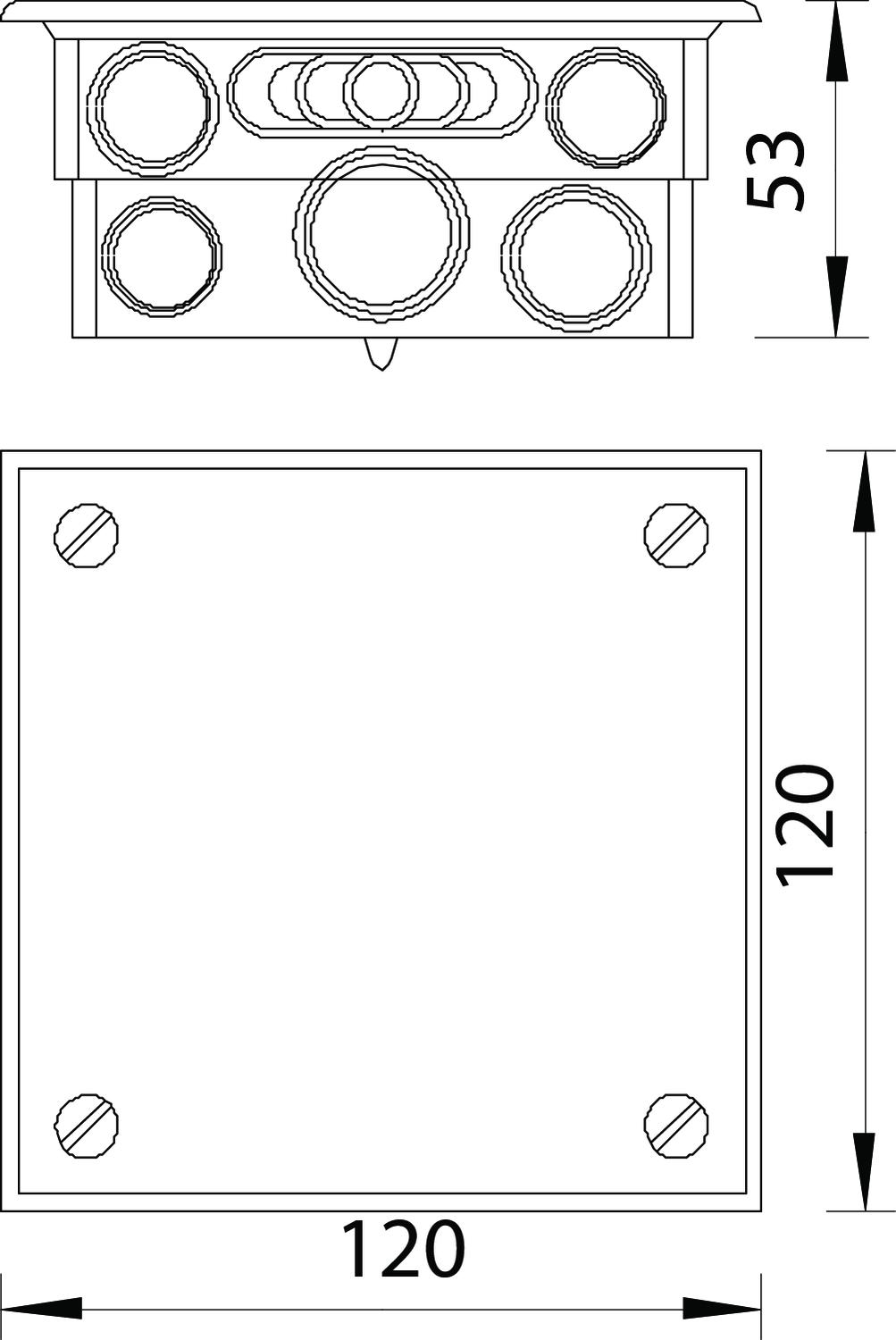

Kõrgus

53 mm

Laius

120 mm

Length

120 mm

Material of clamp

Steel

Material of contact rail

Brass

Model

In housing

Number of connections conductor to 6 mm² fixed

0

Number of connections conductor to 16 mm² fixed

7

Number of connections conductor to 25 mm² fixed

0

Number of connections conductor to 95 mm² fixed

0

Number of connections flat conductor 30 mm

1

Number of connections flat conductor 40 mm

0

Number of connections round conductor 8 mm

0

Number of connections round conductor 8-10 mm

1

Number of connections round conductor 10 mm

0

Number of connections round conductor total

7

Surface of the clamp

Galvanic/electrolytic zinc plated

Surface of the contact rail

Nickel-plated
