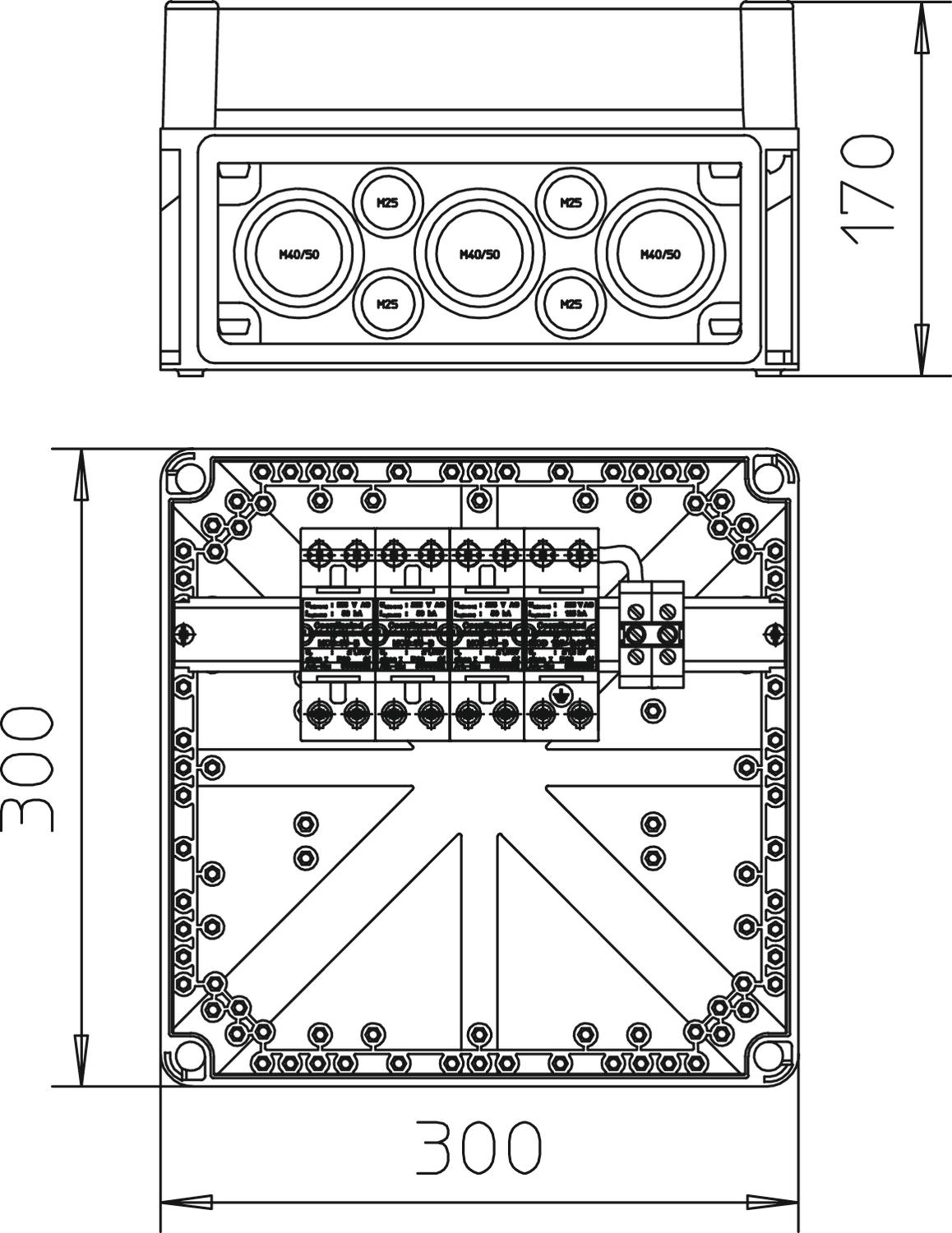

Koordinēts zibensizladnis set type 1 arrestor korpusā 255V

Category type 1

+

Construction size

8 modular spacing

Degree of protection (IP)

IP54

Exhausting

-

Follow current extinguishing capability

25 kA

Integrated backup fuse

-

Lightning impulse current (10/350 µs)

125 kA

Max. continuous voltage AC

255 V

Mounting method

Pre-mounted in housing

Nominal discharge surge current (8/20)

125 kA

Nominal voltage AC

230 V

Number of conductors (without earthing)

-

Signalling at the device

None

Suitable for outdoor use

-

System configuration DC

-

System configuration IT

-

System configuration TN

+

System configuration TN-C

-

System configuration TN-C-S

+

System configuration TN-S

+

System configuration TT

+

System configuration other

-

Voltage protection level

1.3 kV

With remote signalling contact

-
