255V

Category type 2

+

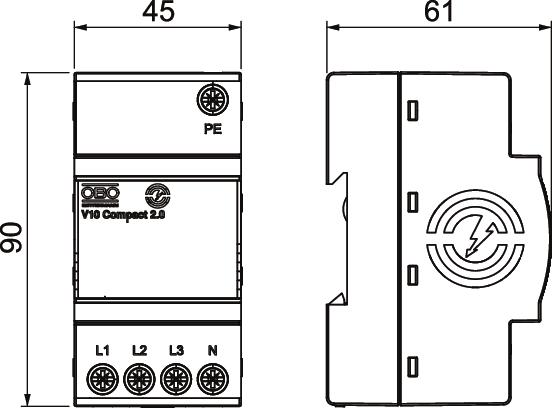

Construction size

Other

Degree of protection (IP)

IP20

Integrated backup fuse

-

Max. conductor cross section solid (solid, stranded)

10 mm²

Max. continuous voltage AC

255 V

Max. discharge surge current (8/20)

20 kA

Mounting method

DIN rail (top hat rail) 35 mm

Nominal discharge surge current (8/20)

10 kA

Nominal voltage AC

230 V

Number of conductors (without earthing)

-

Signalling at the device

Optical

System configuration DC

-

System configuration IT

-

System configuration TN

+

System configuration TN-C

-

System configuration TN-C-S

+

System configuration TN-S

+

System configuration TT

+

System configuration other

-

Voltage protection level L-N

1.1 kV

With remote signalling contact

-
