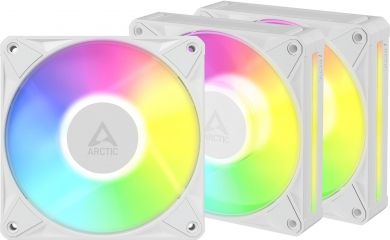

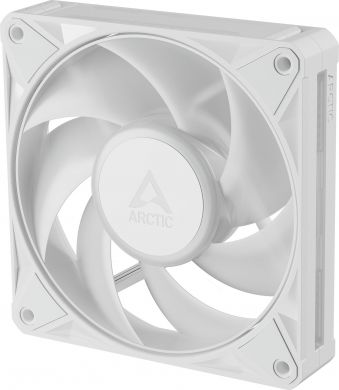

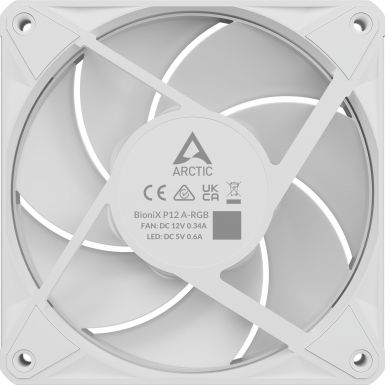

CASE FAN 120MM BIONIX P12 ARGB/3-PACK WHT ACFAN00338A ARCTIC

Airflow

129

Bearing type

Fluid Dynamic Bearing (FDB)

Cable length

0.4 m

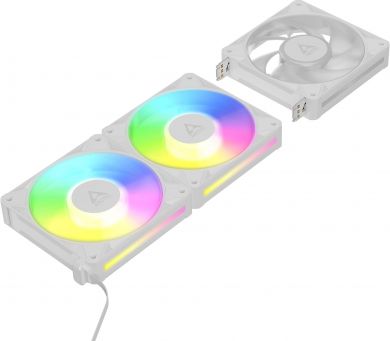

Daisy chain

+

Depth

120 mm

Fan connector

4-pin

Fan current

0.34

Fan diameter

120 mm

Fan voltage

12 V

Height

26 mm

Illumination LED

+

Illumination colour

Blue/Green/Red

LED connector type

3-pin

LED current

0.6

LED voltage

5 V

Maximum airflow

76 cfm

Maximum air pressure

6.7

Model name

BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain

Number of LEDs

16

Number of screws

12

Operating temperature (T-T)

0

Package depth

124 mm

Package height

85 mm

Package type

Box

Package weight

733 g

Package width

158 mm

Product colour

White

Pulse-width modulation (PWM) support

+

Quantity per pack

3

Rotational speed (max)

3000

Rotational speed (min)

450

Screws included

+

Starting voltage

5 V

Suitable location

Computer case

Summary

ARCTIC BioniX P12 A-RGB (White) – 3 Pack 120 mm PWM Fan with Daisy Chain. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 450 RPM, Rotational speed (max): 3000 RPM, Airflow: 129 m³/h, Maximum air pressure: 6.7 mmH2O, Bearing type: Fluid Dy

Type

Fan

Unit Box Height

0.168

Unit Box Length

0.16

Unit Box Width

0.125

Unit Calculated Volume

0.002002 cubm

Units per Pallet

0

Vendor Homepage

https://www.arctic.de/en/BioniX-P12-A-RGB-White-3-Pack/ACFAN00338A

Width

120 mm
