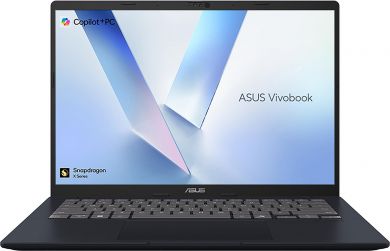

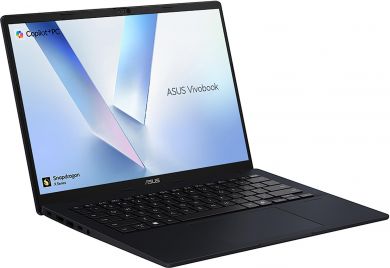

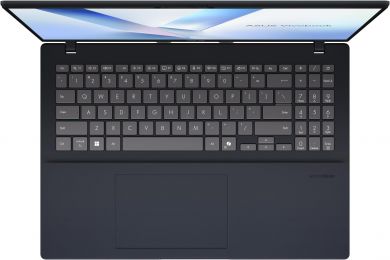

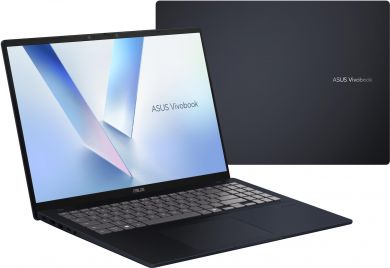

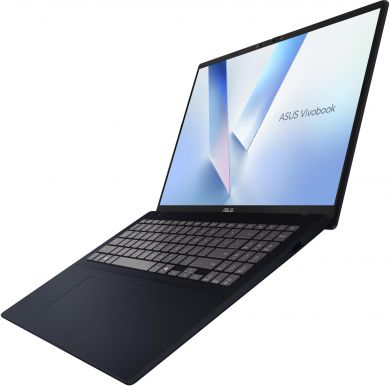

Notebook ASUS VivoBook Series F1607AA-MB047W CPU Intel Core Ultra 5 325 16 " 1920 x 1200 pixels RAM 16 GB DDR5-SDRAM SSD 512 GB Discrete graphics Not available On-board graphics Yes Numeric keypad Yes OS installed Windows 11 Home Colour Blue Weight 1

AC adapter frequency

50

AC adapter included

+

AC adapter input voltage

100 V

AC adapter output current

3.4

AC adapter output voltage

20 V

AC adapter power

68

AI datatype support on NPU

Int8

AI software frameworks supported by NPU

ONNX RT/OpenVINO/WebNN/Windows ML

Antenna type

1x1

Anti-glare screen

0

Audio system

SonicMaster

Battery capacity

42 Wh

Battery technology

Lithium-Ion (Li-Ion)

Bluetooth

+

Bluetooth version

5.3

Built-in microphone

0

Bundled software

3-Month GoPro Premium+ Subscription 1-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026.

Colour gamut

45

Colour name

Quiet Blue

Combo headphone/mic port

+

Compliance certificates

REACH

Depth

250.6 mm

Discrete graphics card

-

Discrete graphics card model

Not available

Display back cover material

Plastic

Display brightness

300

Display diagonal

16

Display resolution

1920

Efficient-core Max Turbo Frequency

4.5

Efficient-core base frequency

1.6

Form factor

Clamshell

Front camera

+

Front camera HD type

Full HD

GPU performance up to

40

HDMI ports quantity

1

HDMI version

2.1

HD type

WUXGA

Height (front)

17.9 mm

Height (rear)

19.9 mm

Housing material

Plastic

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

LED backlight

+

Low Power Efficient-core Base Frequency

1600 MHz

Low Power Efficient-core Max Turbo Frequency

3.4

Low Power Efficient-cores

4

M.2 SSD size

2280 (22 x 80 mm)

Market positioning

Home

Maximum internal memory

32 GB

Maximum refresh rate

60

Maximum turbo power

55

Memory channels

Dual-channel

Memory form factor

On-board + SO-DIMM

Memory slots

1x SO-DIMM

Mobile network connection

-

Model name

F1607AA-MB047W

NB Family name

VivoBook Series

NPU performance up to

47

NVMe

+

Native aspect ratio

16:10

Number of SSDs installed

1

Number of battery cells

3

Numeric keypad

+

On-board GPU manufacturer

Intel

On-board graphics card

+

On-board graphics card 4K support

+

On-board graphics card 8K support

+

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Operating system architecture

64-bit

Operating system installed

Windows 11 Home

Optical drive type

-

Panel type

IPS-Level

Password protection

+

Password protection type

BIOS/User

Performance-core Max Turbo Frequency

4.5

Performance-core base frequency

2.1

Performance cores

4

Pointing device

Touchpad

Privacy camera

+

Privacy type

Privacy shutter

Processor base power

25

Processor boost frequency

4.5

Processor cache

12 MB

Processor cache type

Smart Cache

Processor cores

8

Processor family

Intel Core Ultra 5

Processor generation

Intel® Core™ Ultra (Series 3)

Processor manufacturer

Intel

Processor model

325

Processor threads

8

Product colour

Blue

Product type

Laptop

RGB colour space

NTSC

Removable battery

-

SSD capacity

512 GB

SSD form factor

M.2

SSD interface

PCI Express 4.0

Sparsity support

+

Storage media

SSD

Summary

ASUS Vivobook 16 F1607AA-MB047W. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 325. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB

Sustainability certificates

ENERGY STAR

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Total SSDs capacity

512 GB

Total processor performance up to

99

Total storage capacity

512 GB

Touchscreen

-

Trial software

1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial

Trusted Platform Module (TPM)

+

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB Power Delivery (USB PD)

+

USB Type-C DisplayPort Alternate Mode

+

USB Type-C charging port

+

Unit Box Height

0.31

Unit Box Length

0.485

Unit Box Width

0.07

Unit Calculated Volume

0.01052 cubm

Units per Pallet

0

Vendor Homepage

https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-16-x1607

Weight

1880 g

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Width

357 mm

Windows Hello

+

Windows Studio effects support

+
