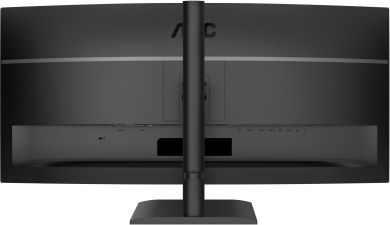

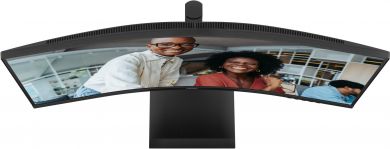

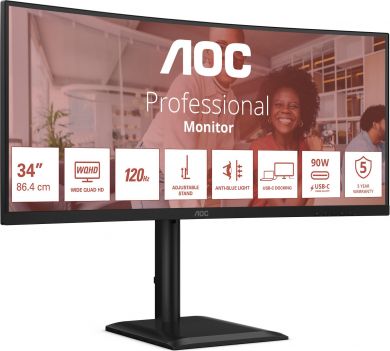

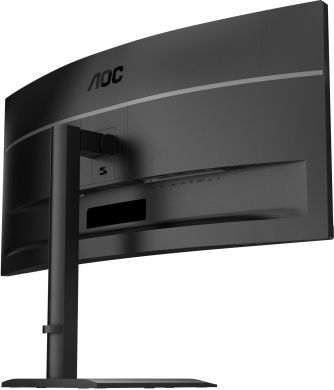

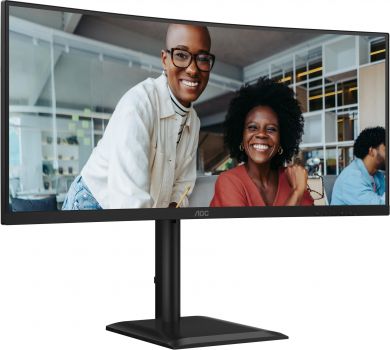

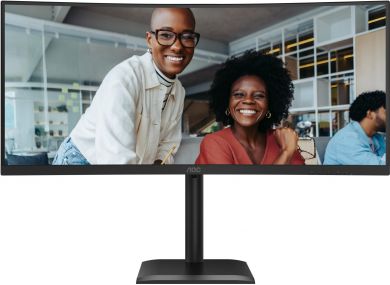

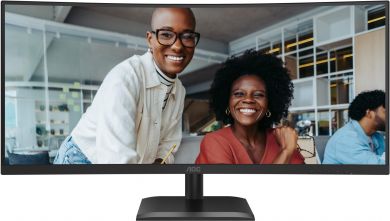

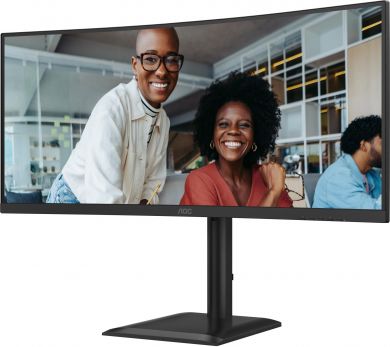

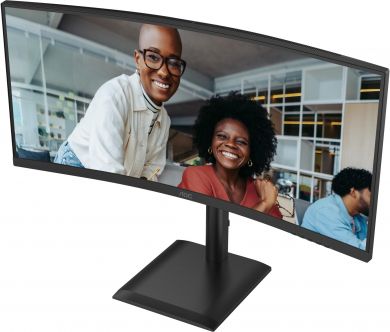

LCD Monitor AOC 34 " 3440 x 1440 pixels UltraWide Quad HD Native aspect ratio 21:9 LCD Curved CU34E4CV

Netokaal

9.92 kg

AC input frequency

50

AC input voltage

100 V

AMD FreeSync refresh rate range

48

Adjustable height (max)

180 mm

Anti-glare screen

+

Audio output

+

Backlight type

W-LED

Bezel thickness type

Frameless

Built-in KVM switch

+

Built-in USB hub

+

Built-in speaker(s)

+

Cable lock slot

+

Cable lock slot type

Kensington

Cable management

+

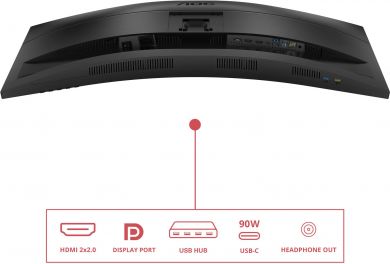

Cables included

AC/DisplayPort/HDMI/USB Type-C

Certification

WEEE,REACH compliant,RoHs compliant,CB,TUV-GS-Mark,TUV Ergo,EAC,FCC

CnCode

85285291

Compliance certificates

CE

Contrast ratio (dynamic)

20000000:1

Contrast ratio (typical)

3500:1

DDC/CI

+

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/2405194/fiches?language=EN

Depth (without stand)

101.5 mm

Depth (with stand)

252.2 mm

Detachable stand

+

Digital horizontal frequency

30

Digital vertical frequency

48

DisplayPort cable length

1.8 m

DisplayPorts quantity

1

DisplayPort version

1.4

Display brightness (typical)

350

Display diagonal

34

Display diagonal (metric)

86.36 cm

Display number of colours

16.7 million colours

Display resolution

3440

Display technology

LCD

Doesn't contain

Mercury/PVC/BFR

EPREL Registration Number

2405194

EPREL Version Number

1

Energy consumption (HDR) per 1000 hours

46

Energy consumption (SDR) per 1000 hours

25

Energy efficiency class

E

Energy efficiency class (HDR)

G

Energy efficiency class (SDR)

E

Energy efficiency scale

A to G

Ethernet LAN

+

Flicker-free technology

+

Frameless design

+

Front bezel colour

Black

HDCP

+

HDCP version

1.4/2.2

HDMI

+

HDMI cable length

1.8 m

HDMI ports quantity

2

HDMI version

2.1

HD type

UltraWide Quad HD

Headphone out

+

Headphone outputs

1

Height (without stand)

365.4 mm

Height (with stand)

581.6 mm

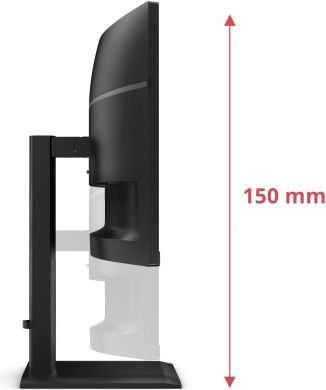

Height adjustment

+

High Dynamic Range (HDR) supported

+

High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10)

Horizontal scan range

30

Input current

2.5

LED backlight

+

Local dimming

+

Low Blue Light technology

+

Market positioning

Office

Maximum refresh rate

120

Native aspect ratio

21:9

Non-operating altitude

0 m

Number of USB Type-B upstream ports quantity

1

Number of USB Type-C upstream ports quantity

2

Number of speakers

2

Operating altitude

0 m

Operating relative humidity (H-H)

10

Operating temperature (T-T)

0

Package depth

188 mm

Package height

188 mm

Package weight

13640 g

Package width

930 mm

Panel mounting interface

100 mm

Panel type

VA

Picture-in-Picture

+

Pixel density

109.68

Pixel pitch

0.23175 mm

Plug and Play

+

Power consumption (max)

179

Power consumption (off)

0.3

Power consumption (standby)

0.5

Power consumption (typical)

31.7

Power supply type

Internal

Product colour

Black

RMS rated power

10

Response time

4 ms

Response time measurement type

GTG (Gray to Gray)

Screen curvature rating

1500R

Screen shape

Curved

Storage relative humidity (H-H)

5

Storage temperature (T-T)

-25

Summary

AOC E4 CU34E4CV. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical:

Surface hardness

3H

Sustainability certificates

EPEAT Climate +/EPEAT Gold/TCO

Swivel angle range

-180

Swivelling

+

Tilt adjustment

+

Tilt angle range

-5

Touchscreen

-

USB Power Delivery (USB PD)

+

USB Power Delivery up to

90

USB Type-A downstream ports quantity

4

USB hub version

2.0 / 3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B/USB Type-C

Unit Box Height

0.195

Unit Box Length

0.695

Unit Box Width

0.195

Unit Calculated Volume

0.09493 cubm

Units per Pallet

0

VESA Adaptive Sync support

+

VESA mounting

+

Vendor Homepage

https://eu.aoc.com/

Vertical scan range

48

Viewable size, horizontal

797.22 mm

Viewable size, vertical

333.72 mm

Viewing angle, horizontal

178

Viewing angle, vertical

178

Warranty period

5

Weight (without stand)

7160 g

Weight (with stand)

9920 g

Width (without stand)

808.8 mm

Width (with stand)

808.8 mm

sRGB coverage (typical)

120.6
