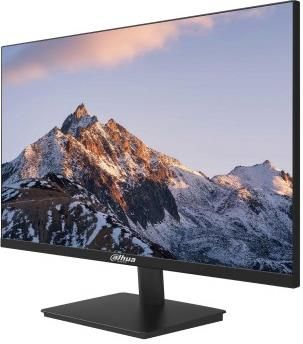

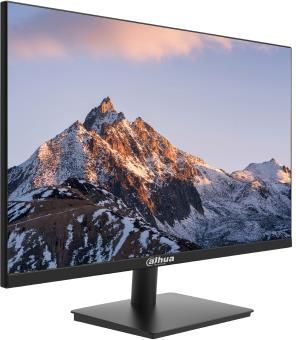

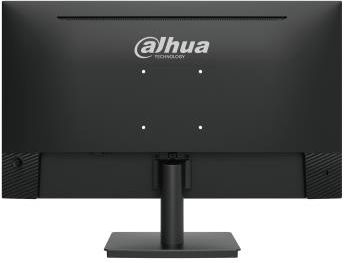

LCD Monitor DAHUA 23.8 " 1920 x 1080 pixels Full HD Native aspect ratio 16:9 LED Flat DHI-LM24-A221Y

Netokaal

2.8 kg

AC adapter output voltage

12 V

AMD FreeSync

-

Automatic brightness control

-

Backlight type

Edge LED

Bezel width (bottom)

16.8 mm

Bezel width (side)

3.6 mm

Bezel width (top)

2.3 mm

Bluetooth

-

Built-in USB hub

-

Built-in camera

-

Built-in speaker(s)

-

Cables included

HDMI

CnCode

85285210

Colour depth

6 bit

Colour gamut standard

NTSC

Compliance certificates

CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Contrast ratio (typical)

1200:1

Data Sheet (Link)

https://eprel.ec.europa.eu/api/product/2452512/fiches?language=EN

Depth (without stand)

47.6 mm

Depth (with stand)

189 mm

Display brightness (typical)

250

Display diagonal

23.8

Display diagonal (metric)

61 cm

Display resolution

1920

Display technology

LED

EPREL Registration Number

2452512

EPREL Version Number

2

Energy consumption (SDR) per 1000 hours

13

Energy efficiency class

D

Energy efficiency class (HDR)

Not available

Energy efficiency class (SDR)

D

Energy efficiency scale

A to G

Feet colour

Black

Flicker-free technology

+

Front bezel colour

Black

HDMI

+

HDMI ports quantity

1

HDMI version

1.4

HD type

Full HD

Haze rate

25

Height (without stand)

322.4 mm

Height (with stand)

418.3 mm

Illuminated stand

-

LED backlight

+

Manual

+

Market positioning

Office

Maximum refresh rate

144

NTSC coverage (typical)

72

NVIDIA G-SYNC

-

Native aspect ratio

16:9

Operating relative humidity (H-H)

10

Operating temperature (T-T)

0

Package depth

120 mm

Package height

412 mm

Package weight

3900 g

Package width

602 mm

Panel mounting interface

100 mm

Panel type

IPS

Pixel density

92.56

Pixel pitch

0.2745 mm

Plug and Play

+

Power adapter included

+

Power consumption (max)

22

Power consumption (off)

0.3

Power consumption (standby)

0.5

Power consumption (typical)

21.2

Power supply type

External

Product colour

Black

Quick start guide

+

Response time (MPRT)

1 ms

Screen shape

Flat

Stand included

+

Storage relative humidity (H-H)

5

Storage temperature (T-T)

-20

Summary

Dahua Technology LM24-A221Y. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mount

Supported graphics resolutions

1920 x 1080 (HD 1080)

Supported video modes

1080p

Surface hardness

3H

Tilt adjustment

+

Tilt angle range

-5

Touchscreen

-

Unit Box Height

0.41

Unit Box Length

0.362

Unit Box Width

0.12

Unit Calculated Volume

0.02977 cubm

Units per Pallet

0

VESA mounting

+

VGA (D-Sub) ports quantity

1

Vendor Homepage

https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-A221Y=V1

Viewable size, horizontal

527.04 mm

Viewable size, vertical

296.46 mm

Viewing angle, horizontal

178

Viewing angle, vertical

178

Wall mountable

+

Weight (without stand)

2800 g

Wi-Fi

-

Width (without stand)

542.1 mm

Width (with stand)

542.1 mm
